Bit inserts & bits
ESD screwdriver bit set 47 pieces
CHF 57.60 excl. VAT, plus shipping costs
Item no:
4-910
Stock level:2 Available immediately
Description
47-piece precision repair set consisting of a suction cup opener and an extremely narrow and filigree opening tool, conductive ESD tweezers, a bit extension, the 42-piece bit set with conductive ESD bit handle made of aluminum with twist cap.
Technical data
- 3 bit bars equipped with 36 special bits and 1 bit bar with 6 socket wrenches
- Precision repair kit for smartphones (I-Phone, Samsung, HTC) tablets and PCs
- 4 bit bolt 4mm (5/32 inch) 6-kt
- Blade length 22 mm
- Blades Ø 8 mm
- including ESD handle and ESD tweezers (dissipative 10^6 to 10^9 Ohm)
- including opening tool + suction lifter + bit extension
- Quality steel, sandblasted and nickel-plated 52-54 HRC
- Dimensions: 175 x 160 x 45 mm
- Weight 420 g
SCOPE OF DELIVERY
- 6-340-1 ESD bit holder dissipative for 4 mm (5/32 inch) hex bits
- 6-340-2 Bit extension for 4 mm (5/32 inch) hex bits

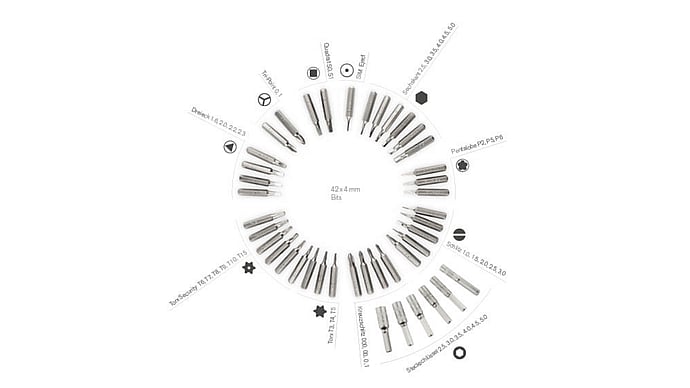

- 6-340-3 C4 bit set 42 pcs, consisting of:
- Slot 1.0-1.5-2.0-2.5-3.0
- Kreuz-Schlitz PH000-PH00-PH0-PH1
- Torx T3-T4-T5-T6-T7-T8-T9-T10-T15
- Sechskant 0.9-1.3-1.5-2.0-2.5-3.0
- Steckschlüssel 2.5-3.0-3.5-4.0-4.5-5.0
- Triangle 1.6-2.0-2.2-2.3, square S0-S1
- Pentalobe P2-P5-P6, SIM-Eject, Tri-Point 0-1
- 2-111 LCD opener Suction cup with ring
- 2-124 Opening tool BERNSTEIN metal opener flat
- 5-059-13 ESD SMD tweezers 120 mm shape 2a stainless steel dissipative
Additional information
| Bit inserts & bits | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| LEDs | ||||||||
|
|
||||||||
| Tool sets | ||||||||
|
|
||||||||
Data sheets
| Scope of delivery | PDF(56.15 KB) |
|---|---|
| Screwing tool-EN | PDF(13.79 MB) |
| Screwingtools-EN | PDF(13.76 MB) |
