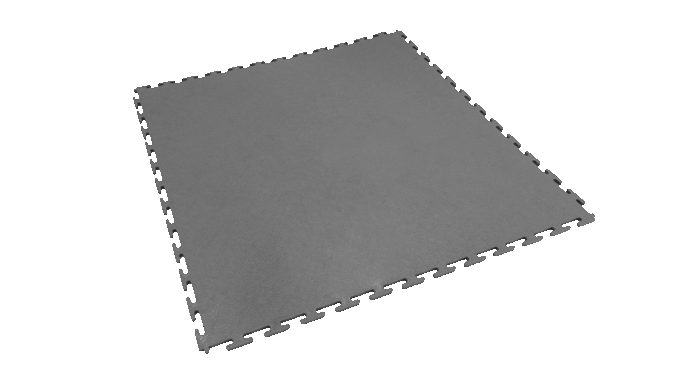

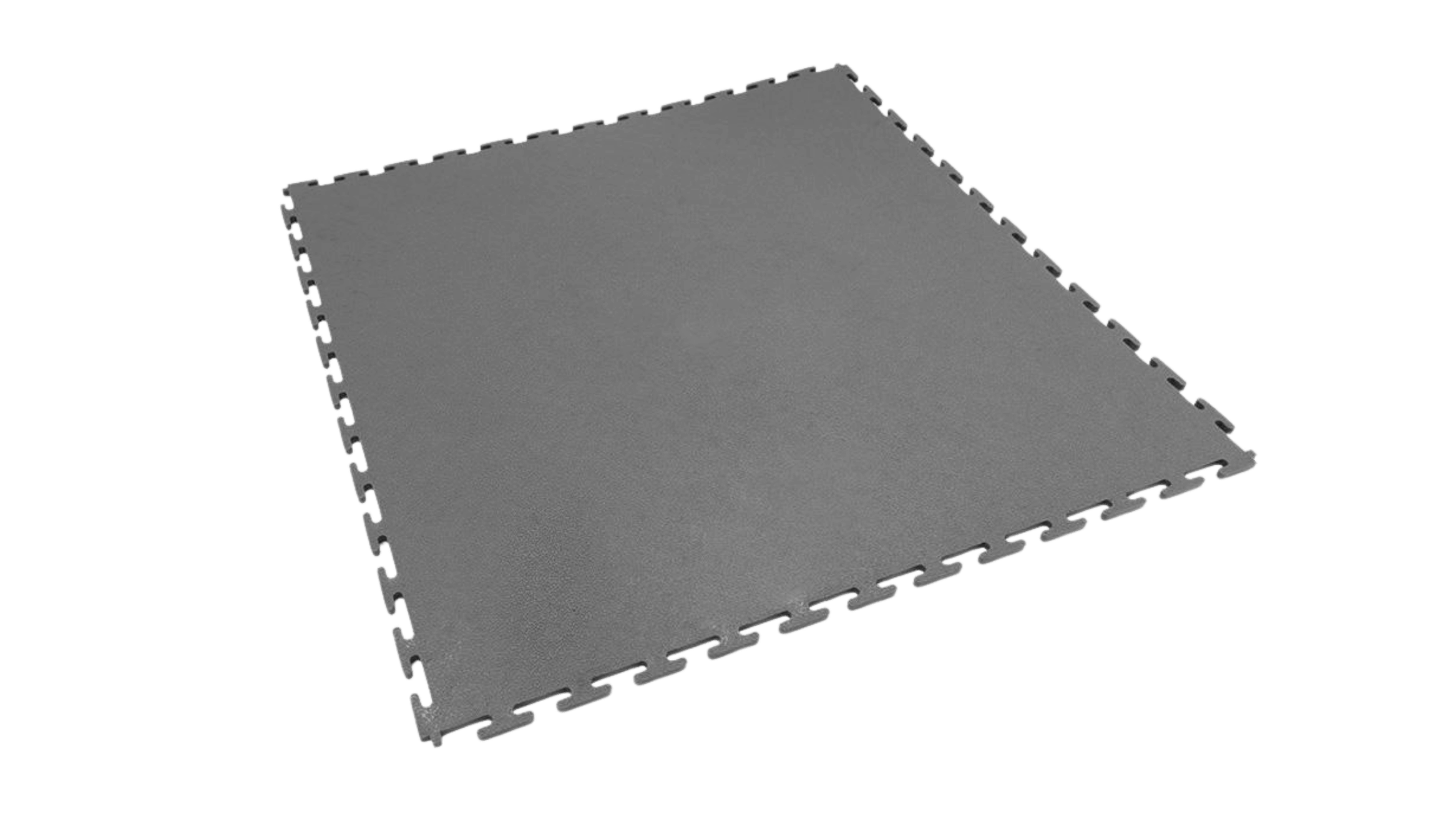

ESD puzzle system for EPA, electronics, and industrial areas, 500×500×6 mm
CHF 26.50 excl. VAT, plus shipping costs
Description
This anti-static flooring with a puzzle system is a flexible solution for electronics manufacturing, laboratories, service areas, and EPA zones where reliable ESD protection is required. The modular PVC tiles (500×500×6 mm) can be laid quickly without tools, customized individually, and easily replaced if necessary.
The conductive material (10³–10⁵ ohms) safely dissipates electrostatic charges and protects sensitive components. The robust, textured surface is durable, easy to clean, and resistant to many chemicals.
The flooring is suitable for light to heavy industrial applications, can be installed on almost any surface with or without adhesive, and can withstand pallet truck and forklift loads. Edge and corner elements are available as options.
Ideal for production halls, assembly areas, robotics and development areas where safe working conditions and flexible space design are crucial.
Technical data
- Size: 500 × 500 × 6 mm
- Color: Grey
- Material: PVC
- Surface: Textured
- Discharge resistance: Conductive 10³ – 10⁵ ohms
- Chemical resistance: Resistant to most chemicals
- Assembly: Puzzle plug-in system, can be installed without tools
- Substrate: Can be installed on almost any substrate
- Adhesive: Installation possible with or without adhesive
- Industrial use: Suitable for light to heavy applications, forklift-compatible
- Optional accessories: Edge ramps available
resilience
- Hand pallet truck:
Without adhesive: up to 800 kg
With adhesive: up to 1500 kg - Diesel forklift trucks:
Without adhesive: 3000 kg vehicle + 2000 kg load
With adhesive: 5000 kg vehicle + 3000 kg load - Electric forklift trucks:
Bonded assembly recommended
