Statest Floor quick test device
Description
Check an entire workstation in less than 30 seconds!

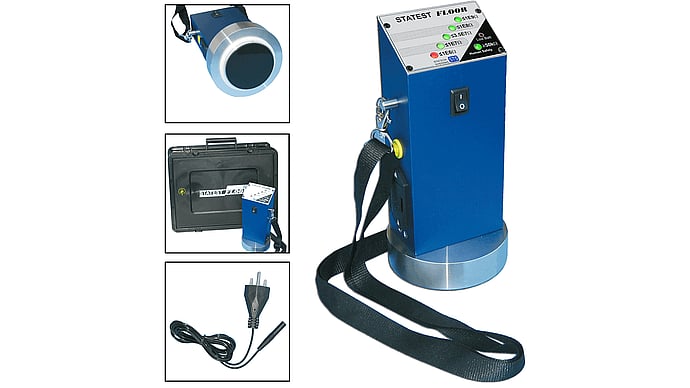

The STATEST FLOOR was specially created for fast, standard-compliant product verification. It is easy to use and saves time during periodic checks of ESD protective equipment. Regardless of whether it is dissipative floors, tables, chairs or trolleys, with the STATEST FLOOR you know within seconds what condition the ESD protective equipment is in. The adjustable nylon carrying strap allows normal, fatigue-free working while standing (without constantly bending down).
Technical data
- Measuring ranges: ≤1E9Ω, ≤1E8Ω, ≤3.5E7Ω, ≤1E7Ω, ≤1E6Ω
- Accuracy: ±5%
- Other displays: Personal safety ≥5E4Ω, "Low-Batt"
- Measuring voltage: 100V DC (stabilized)
- Weight: 2.3Kg
- Electrode: rubber, soot-filled, Ø=63mm, replaceable
Device incl. 2.5m earth cable with T12 mains plug or Schuko plug, calibration certificate, operating instructions, 9V battery and carrying case.
Additional information
| LEDs | ||
|---|---|---|
|
||
| Measuring tool | ||
|
|
||
| More | ||
|
||
