ESD work tables
Electrically adjustable ESD table Premium 1830 x 750 mm
Book a free demo nowCHF 2'299.00 excl. VAT, plus shipping costs
Item no:
RF-001-18375-9003-M-S1
In stock: Available to order
Estimated delivery time:
2.5 weeks
Description
This high-quality ESD workbench is equipped with modern lifting columns and an electric drive system for infinitely variable height adjustment. Ideal for electrostatically protected work areas.
- High load capacity with minimal energy consumption - only 0.1 W in standby mode
- Modularly expandable, robustly constructed and designed for durability
- Perfect for professional use in electronics production, laboratories or technical workstations
Technical data & highlights
- Dimensions: W 1830 × D 750 mm
- Height adjustment: 670 - 1120 mm, stepless (continuous with inner rail)
- Max. Load of the frame: 320 kg
- Standard: Complies with EN 60335-1 and IEC-61340-5-1
Electric adjustment
- Smooth start & stop thanks to intelligent control box
- Low-noise operation
- Maximum force: 1600 N (per leg)
- Lifting speed: up to 43 mm/s (with zero load)
- Power supply: 24 V - AC adapter included in scope of delivery
- Bluetooth connection: Height adjustment also possible via smartphone app
Table top - conductive & resistant
- Color: RAL 7036
- Surface: Conductive laminate, scratch and moisture resistant
- Core: Moisture-resistant, conductive core
- Thickness: 25 mm
- Mounting: Attached to the frame with robust threaded sleeves
Installation - tools required: Allen key: No. 4 & No. 6, Phillips screwdriver PZ2 and open-end wrench No. 13
Scope of delivery
- Electrically adjustable ESD table frame Premium 1830 x 750 mm 1 piece
- ESD table top (0.3 mm melamine), 1830 x 750 mm 1 piece
Additional information
| ESD work tables | ||||
|---|---|---|---|---|
|
||||
| LEDs | ||||
|
|
||||
Data sheets
| Assembly instructions | PDF(799.86 KB) |
|---|
Accessories
-
RF-097-PS01_1W-9003
ESD waste containerCHF 306.60Available to order -
ESD container
ESD containerCHF 3.50 - CHF 14.10Select version This product has several variants. The options can be selected on the product page -
RF-021-FOOTREST-9003
ESD footrestCHF 187.50Available to order -
ESD Ergonomic table top
ESD Ergonomic table topCHF 247.00 - CHF 326.00Select version This product has several variants. The options can be selected on the product page -
6-600

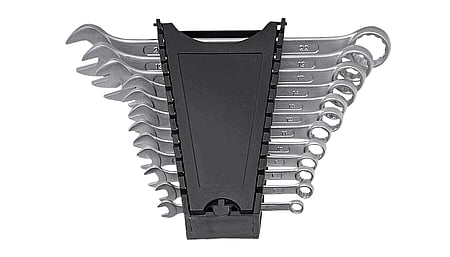

Combination wrench DIN 3113 set 12 pcsCHF 33.504 Available immediately -
