ESD contact wrist strap suitable for 3-4 mm push button, blue

Name: BERNSTEIN - ESD contact bracelet suitable for 3-4 mm push button, blue
Brand: BERNSTEIN
SKU: 9-342-1
Price: 8.50 CHF
Availability: InStock

CHF 8.50 excl. VAT, plus shipping costs

Item no: 9-342-1

Stock level:10 Available immediately

Recommend:

Delivery time request Print PDF

Description

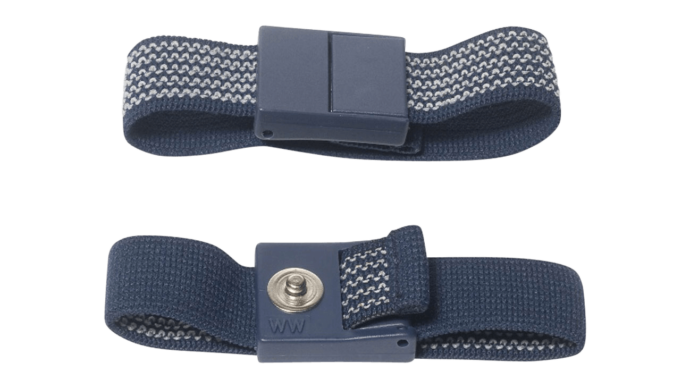

Wrist earthing, as a safe method of discharging electrostatic charges from people, consists of an adjustable wrist strap with woven-in silver-plated plastic fibers (close skin contact required) and a spiral cable that connects the wrist strap to the earthing point via push buttons (DK) in an electrically conductive manner. The spiral cable contains a safety resistor of 1 MOhm on each connection side and is approved for workplaces with a rated voltage of up to 250 VAC. To ensure adequate insulation, the wrist strap must only be stored in a dry place.

Washing instructions for the bracelet: Standard machine wash up to 30° C with color and mild detergent, tumble dry at low temperature (gentle), do not bleach. Avoid contact with acidic / alkaline solvents. ESD protection is retained for approx. 30 washes.

Technical data

EPA suitable. For working in electrostatically protected areas (ESD workplace/ESD protection zone).
Meets the safety requirements for wrist earthing in accordance with BGI 818 (DIN EN 61340-5-1)
adjustable, anti-allergic, washable
Bracelet length 220 mm
Push button 3-4 mm
silver-plated synthetic fibers woven into the fabric
Resistance inside 10^3-10^5, outside 10^7-10^9
Test method DIN EN 61340-4-6
Color dark blue
Weight 13 g
