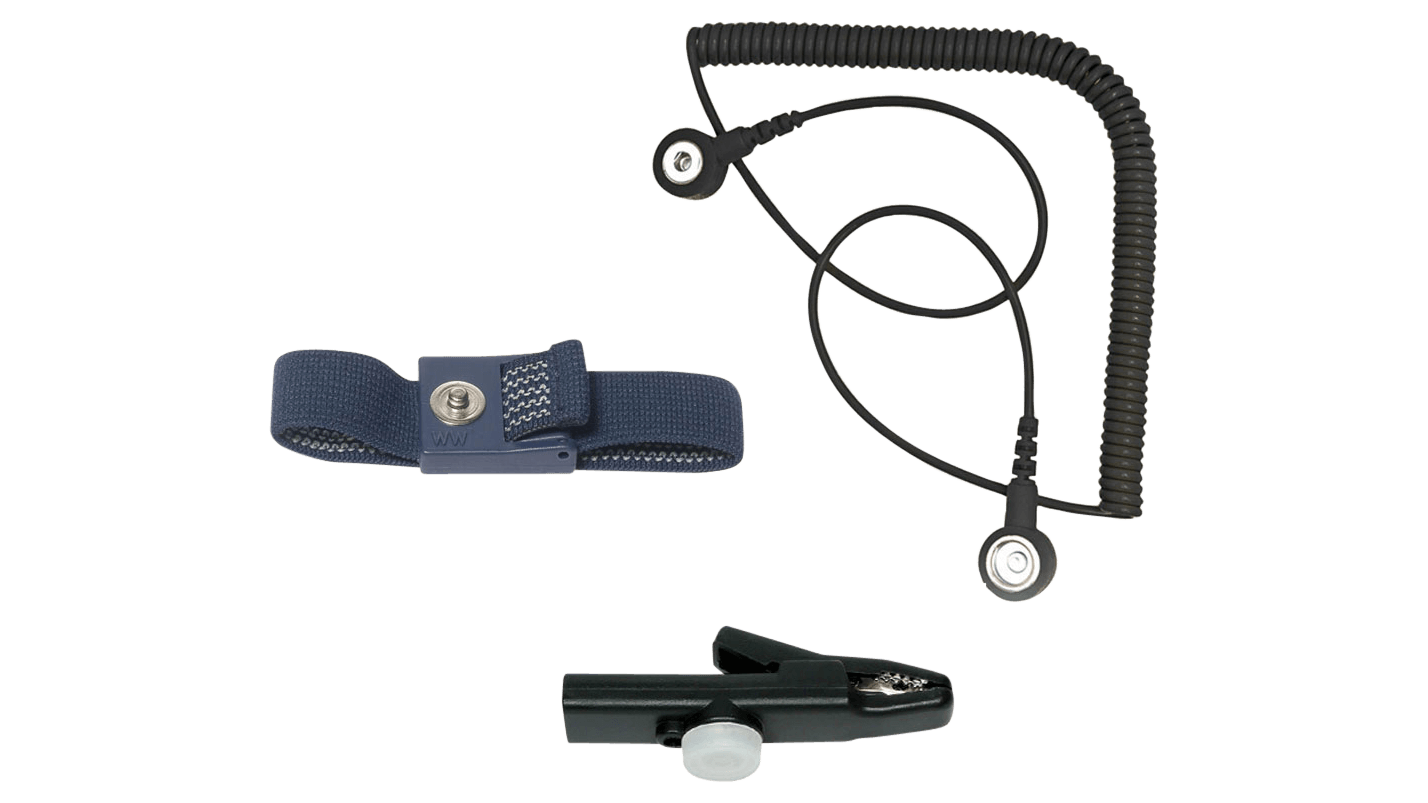

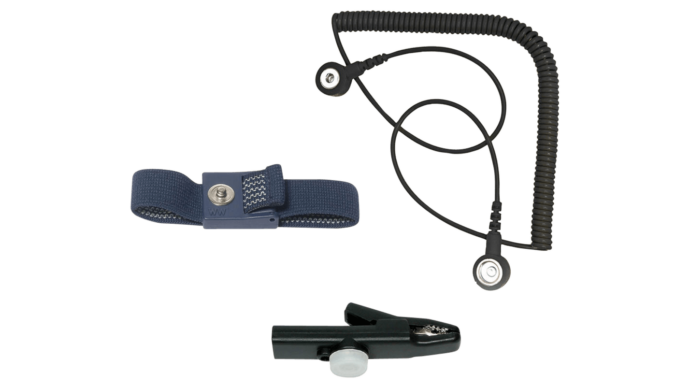

ESD contact bracelet with spiral cable + crocodile clip
CHF 25.00 excl. VAT, plus shipping costs
Description
Wrist earthing, as a safe method of discharging electrostatic charges from people, consists of an adjustable wrist strap with woven-in silver-plated plastic fibers (close skin contact required) and a spiral cable that connects the wrist strap to the earthing point via push buttons (DK) in an electrically conductive manner. The spiral cable contains a safety resistor of 1 MOhm on each connection side and is approved for workplaces with a rated voltage of up to 250 VAC. To ensure adequate insulation, the wrist strap must only be stored in a dry place.
Washing instructions for the bracelet: Standard machine wash up to 30° C with color and mild detergent, tumble dry at low temperature (gentle), do not bleach. Avoid contact with acidic / alkaline solvents. ESD protection is retained for approx. 30 washes.
Technical data
- Wristband and cable suitable for EPA. For working in electrostatically protected areas (ESD workplace/ESD protection zone).
- Meets the safety requirements for wrist earthing in accordance with BGI 818 (DIN EN 61340-5-1)
- adjustable, hypoallergenic, washable (woven-in silver-plated synthetic fibers)
- Belt length 200 mm
- Push buttons 3-4 mm for wrist strap and 10 mm for earthing contact connection
- Highly elastic 2400 mm long spiral cable
- Cable: 2 x 1 megohm safety resistor, wristband: resistance inside 10^3-10^5, outside 10^7-10^9
- Additional insulated crocodile clip for earthing via terminal connection
- Color dark blue
- Weight 60 g
