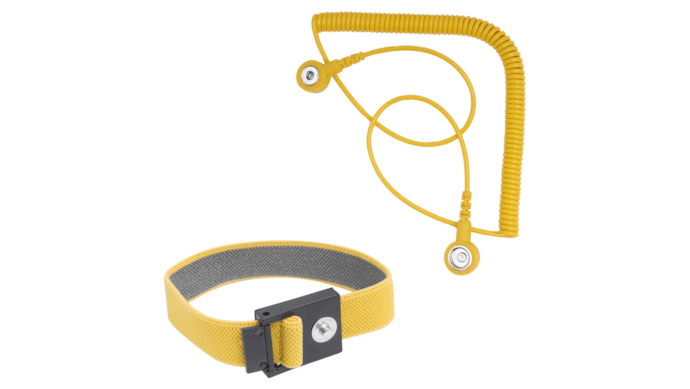

ESD contact wrist strap with spiral cable, yellow, 2.4 m

Name: BERNSTEIN - ESD contact wrist strap with spiral cable, yellow, 2.4 m
Brand: BERNSTEIN
SKU: 9-341
Price: 8.50 CHF
Availability: InStock

CHF 8.50 excl. VAT, plus shipping costs

Item no: 9-341

Stock level:13 Available immediately

Recommend:

Delivery time request Print PDF

Description

Wrist earthing, as a safe method of discharging electrostatic charges from people, consists of an adjustable wrist strap with woven-in silver-plated plastic fibers (close skin contact required) and a spiral cable that connects the wrist strap to the earthing point via push buttons (DK) in an electrically conductive manner. The spiral cable contains a safety resistor of 1 MOhm on each connection side and is approved for workplaces with a rated voltage of up to 250 VAC. To ensure adequate insulation, the wrist strap must only be stored in a dry place.

Washing instructions for the bracelet: Standard machine wash up to 30° C with color and mild detergent, tumble dry at low temperature (gentle), do not bleach. Avoid contact with acidic / alkaline solvents. ESD protection is retained for approx. 30 washes. Connection recommendation: 9-359-1 ESD earthing module 3×10 mm push-button for table screw connection or 9-359-2 ESD earthing plug 2×10 mm push-button and M5 connection for EU sockets.

Regularly check your ESD workplace equipment and ESD tools to ensure ESD standard-compliant work (IEC 61340-5-1).

Technical data

EPA suitable. For working in electrostatically protected areas (ESD workplace/ESD protection zone).
Meets the safety requirements for wrist earthing in accordance with BGI 818 (DIN EN 61340-5-1)
adjustable, hypoallergenic, washable (integrated silver and carbon threads)
Strap length 220 mm, cable length 700 to max. 2400 mm
Push buttons 3-4 mm for wrist strap and 10 mm for earthing contact connection
Highly elastic 2400 mm long spiral cable
Cable: 2 x 1 megohm safety resistor
Bracelet: Resistance 10^5 to 10^7
Color yellow
Weight 33 g
