55W UPS power supply unit - battery charging function 12V battery

CHF 28.40 excl. VAT, plus shipping costs

Item no: AD-55A
In stock: Available to order
Packaging ex works: 24 piece
Estimated delivery time: 2 weeks
5+ CHF 28.40 CHF 27.00 (4%save)
10+ CHF 27.00 CHF 25.90 (8%save)
20+ CHF 25.90 CHF 25.10 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

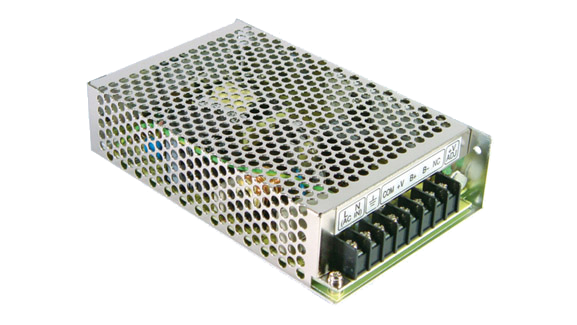

AD-55A is a power supply unit with integrated UPS function.

Technical data

  • Input voltage 88 to 264Vac
  • With battery charging function for UPS operation
  • Output voltage adjustable with internal potentiometer
  • Output voltage 13.8Vdc / 3.5A
  • Charging current: 13.4V / 0-0.23A
  • Alarm signal for low battery
  • Reverse polarity protection
  • Dimensions 159 x 97 x 38mm (L x W x H)

Additional information

UPS & Security
Output voltage (Vdc)

13.8

Battery voltage (Vdc)

12

Charging current (A)

0.23

Power (W)

55

Further functions

Battery charger, UPS function
LEDs
Manufacturer

MEAN WELL
Enclosed power supplies
Protection class

Class I

Application

Fire & Security, ITE/AV

Length (mm)

159

Width (mm)

97

Height (mm)

38
More
Manufacturer's warranty

2 years

Efficiency typ.

71%

Convection power (W)

38

Data sheets

Data sheet AD-55 PDF(655.61 KB)

Downloads

3D Step File AD-55 Zip file (368.33 KB)
