Enclosed power supplies
65W Power supply 3.3V/20A
CHF 19.60 excl. VAT, plus shipping costs
Item no:
RS-100-3.3
In stock: Available to order
Packaging ex works:
24 piece
5+ CHF 19.60 CHF 18.70 (4%save)
10+ CHF 18.70 CHF 17.90 (8%save)
20+ CHF 17.90 CHF 17.40 (11%save)
Description

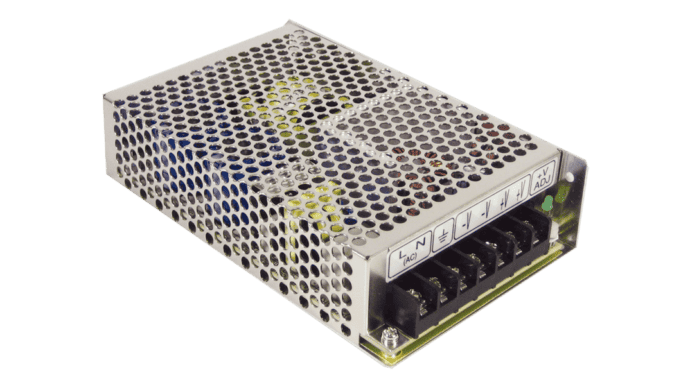

Mean Well RS-100-3.3 switching power supply in a metal housing with screw terminals. Vibration-resistant up to 5G and with a 3-year warranty.
Technical data
- Input voltage 88 to 264Vac
- Power consumption at no load <0.5W
- Metal housing with screw terminals
- Operating temperature range from -20°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Vibration test up to 5G
- Dimensions 159 x 97 x 38mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet RS-100 | PDF(284.88 KB) |
|---|---|
| Test Report | PDF(404.45 KB) |
| Installation Manual Enclosed | PDF(995.59 KB) |
| Carbon Footprint declaration RS-100 | PDF(73.53 KB) |
Downloads
| 3D data RS-100 | Zip file (584.56 KB) |
|---|
