5W DC/DC converter, input 3...17V, output 0.9...6.0/1000mA, LGA

Name: RPM5.0-1.0-CT - Recom - 5W DC/DC converter, input 3...17V, output 0.9...6.0/1000mA, LGA
Brand: Recom
SKU: RPM5.0-1.0-CT
Price: 4.65 CHF
Availability: InStock

CHF 4.65 excl. VAT, plus shipping costs

Item no: RPM5.0-1.0-CT

Stock level:30 Available immediately

Packaging ex works: 30 piece

10+ ~~CHF 4.65~~ CHF 4.45 (4%save)

25+ ~~CHF 4.45~~ CHF 4.30 (7%save)

50+ ~~CHF 4.30~~ CHF 4.25 (8%save)

100+ ~~CHF 4.25~~ CHF 4.10 (11%save)

Recommend:

Delivery time request Print PDF

Description

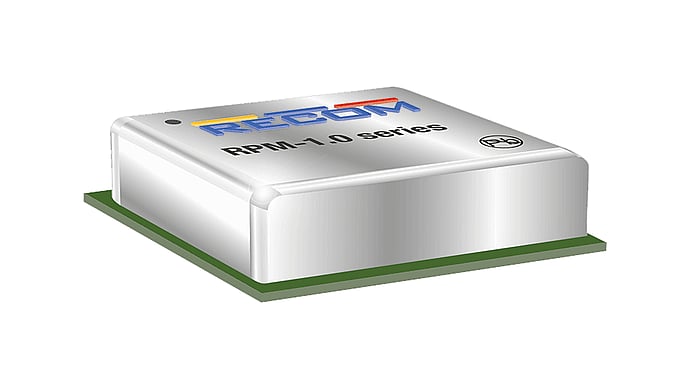

The RPM-1.0 series is a non-isolated 1A switching regulator power module with a full range of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of just 3.75mm, but with an efficiency of up to 99%, the device can operate at full load in ambient temperatures of up to +107°C without forced air cooling. The housing is complete with 6-sided shielding for optimum EMC performance and excellent thermal management.

Technical data

High power density (LxWxH = 12.19 x 12.19 x 3.75mm)
Wide operating temperature range -40°C to +107°C at full load
Efficiency of up to 99%, no heat sinks required
6-sided shielding
Thermally and EMC-optimized LGA housing with 25 pads
Compact DOSA-compatible footprint
Low profile

Additional information

DC-DC converter

Output voltage (Vdc)	1.2, 1.5, 1.8, 2.5, 3.3, 5, 5.1
Output voltage range (Vdc)	0.9...6
Power (W)	5
Output current (mA)	1000
Nominal input voltage (Vdc)	3.3, 5, 9, 12
I/O isolation	not isolated
Regulation	Regulated
Design	LGA
Length (mm)	12.19
Width (mm)	12.19
Height (mm)	3.75
Manufacturer	Recom
