Wall mount adapters
6W medical plug-in power supply 12V/0.5A, EU Version
Discontinued, available while stocks last - successor item NGE12E12-P1J
CHF 9.00 excl. VAT, plus shipping costs
Item no:
GSM06E12-P1J
Stock level:1 Available immediately
Description

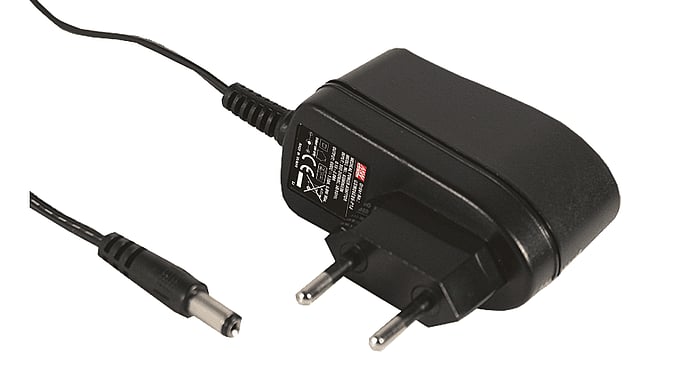

GSM06E12-P1J is a reliable plug-in power supply with European mains plug and medical approvals.
Technical data
- Input voltage 85 to 264Vac, 2-pin Euro mains plug
- DC output with round plug 2.1 x 5.5 x 11mm
- Medical approval 2xMOPP level for patient contact
- Complies with the home healthcare standard EN60601-1-11
- Leakage current <50μA
- Energy efficiency level V
- No load power consumption <0.3W
- Protection class II Device without earth connection
- Ambient temperature up to 50°C, derating from 40°C
- Dimensions 66 x 32 x 42.5mm (L x W x H), slim design
