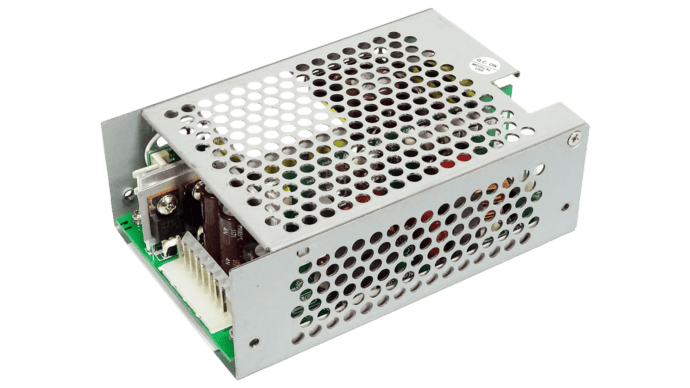

160W medical power supply 24V/6.66A

Name: SNP-G169-CM - Skynet - 160W medical power supply 24V/6.66A
Brand: Skynet
SKU: SNP-G169-CM
Price: 162.40 CHF
Availability: InStock

CHF 162.40 excl. VAT, plus shipping costs

Item no: SNP-G169-CM

In stock: Available to order

Recommend:

Delivery time request Print PDF

Description

SNP-G16x-M is a reliable, medical power supply unit with a very high power density. The power supply unit is capable of supplying up to 320 W of power for short periods and is therefore ideal for operating motors, valves and other electromechanical components with high starting currents.

Technical data

Input voltage 90 to 264Vac
Medicine (2MOPP) and industry certification
320 watts peak load for 5 seconds.
Designed for operations up to max. 5000m.a.s.l. operating altitude
Remote Sense
12V output for fan
Efficiency 80% to 90%
Ambient temperature -20°C to +70°C
Power consumption at no load <0.5W
Dimensions 127 x 83.8 x 43mm (L x W x H)

Additional information

Enclosed power supplies

Output voltage (Vdc)	24
Power (W)	160
Input voltage range (Vac)	90 to 264
Protection class	Class I
Application	Medical
Further functions	12Vdc auxiliary output, peak power
Control signals	Remote Sense
Manufacturer	Skynet
Length (mm)	127
Width (mm)	83.8
Height (mm)	43

LEDs

Manufacturer's warranty	10 years
Efficiency typ.	85%

Data sheets

Data sheet SNP-G16-C	PDF(418.77 KB)

Downloads

3D data SNP-G16-C	Zip file (952.84 KB)
