Redundancy modules

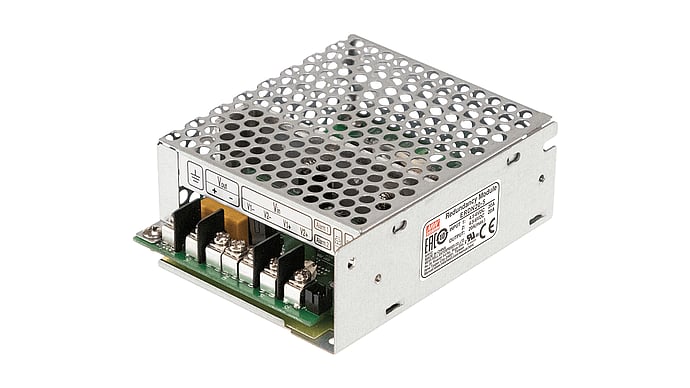

20A redundancy module for 24V systems
CHF 20.60 excl. VAT, plus shipping costs
Item no:
ERDN20-24
Stock level:4 Available immediately
Packaging ex works:
45 piece
5+ CHF 20.60 CHF 19.60 (4%save)
10+ CHF 19.60 CHF 18.70 (9%save)
20+ CHF 18.70 CHF 18.30 (11%save)
Description
ERDN20-24 is a 20A redundancy module which can be used to improve the reliability of the overall system. The MOSFET technology used increases the efficiency and reduces the voltage drop between input and output voltage. A DC OK relay contact is installed per channel for monitoring purposes.
Technical data
- Supports 1+1 and N+1 redundancy systems
- 2 channels input and 1 channel output
- Output current up to 20A
- Input current per channel 10A x 2 or 20A x 1
- Efficiency 98
- Voltage drop 0.25Vdc maximum
- 2-channel DC OK signal and alarm relay contact
- Dimensions 82 x 99 x 36 mm (W x L x H)
- 3-year guarantee
Additional information
| LEDs | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| More | ||||||||||||
|
||||||||||||
Data sheets
| Data sheet ERDN20 | PDF(392.54 KB) |
|---|---|
| Test Report ERDN20-24 | PDF(165.6 KB) |
| Installation Manual ERDN | PDF(174.17 KB) |
| Carbon Footprint declaration ERDN20 | PDF(73.87 KB) |
Downloads
| 3D data ERDN20 | Zip file (439.83 KB) |
|---|
