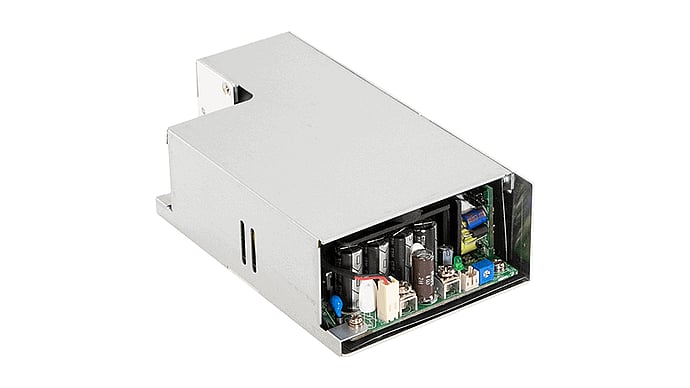

500W medical power supply 12V/41.6A

Name: RPS-500-12-SF - MEAN WELL - 500W medical power supply 12V/41.6A
Brand: MEAN WELL
SKU: RPS-500-12-SF
Price: 90.40 CHF
Availability: InStock

CHF 90.40 excl. VAT, plus shipping costs

Item no: RPS-500-12-SF

In stock: Available to order

Packaging ex works: 24 piece

5+ ~~CHF 90.40~~ CHF 86.10 (4%save)

10+ ~~CHF 86.10~~ CHF 82.30 (8%save)

20+ ~~CHF 82.30~~ CHF 79.90 (11%save)

Recommend:

Delivery time request Print PDF

Description

RPS-500-12-SF is a reliable medical power supply unit with a very high power density. Version with side fan

Technical data

Input voltage 80 to 264Vac
500W with integrated fan
Approved for Class I (with protective earth) applications
No load power consumption 0.5W
Efficiency up to 94
Output signal for power o.k.
Auxiliary output 5V / 0.6A
Short-circuit, overload, overvoltage and temperature protection
Approvals: ANSI/AAMI ES60601-1 and IEC/EN60601-1 with 2xMOPP level
Dimensions 160 x 86 x 43mm (L x W x H)

Additional information

Enclosed power supplies

Output voltage (Vdc)	12
Power (W)	500
Input voltage range (Vac)	80 to 264
Protection class	Class I
Setting range Vdc max	12.6
Setting range Vdc min	11.4
Application	Household, Medical
Further functions	5Vdc auxiliary output, 12Vdc auxiliary output
Status signals	DC OK signal
Control signals	Remote ON/OFF, Remote Sense
Manufacturer	MEAN WELL
Length (mm)	160
Width (mm)	86
Height (mm)	43

LEDs

Manufacturer's warranty	3 years
Efficiency typ.	91%

Data sheets

Data sheet RPS-500	PDF(1.67 MB)

Downloads

3D data RPS-500	Zip file (3.1 MB)
