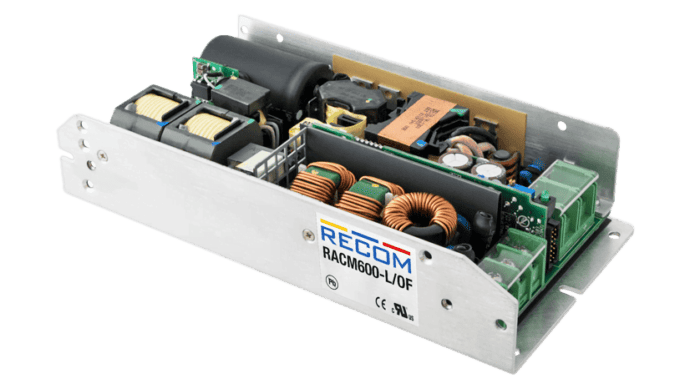

600W open frame power supply unit in U-profile 12V/66.67A, medical and industrial
CHF 177.75 excl. VAT, plus shipping costs
Description
The RECOM RACM600-12SL/OF delivers up to 400/450W continuously at 115/230Vac mains voltage under convection cooling or up to 800W as a temporary peak or continuous 600W in systems with forced airflow. The series has a universal 80-275VAC input and is available with a +/-20% adjustable 24V output and an additional 5V/0.5A standby output. The power supply unit is certified for medical applications according to 2x MOPP and for industrial applications according to IEC62368-1. Monitoring and control functions can be controlled via the integrated PMBus interface.
Technical data
- 400/450 watt convection-cooled (115/230VAC)
- 600 watts forced air or peak power
- 5VSB output
- Redundant operation; active current sharing
- Remote Sense, Remote ON/OFF, PMBus
- IEC60601 MOPP insulation system, BF-ready
Additional information
| Open Frame | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet RACM600-SL/OF | PDF(480.18 KB) |
|---|
Downloads
| 3D data RACM600-SL/OF | Zip file (6.52 MB) |
|---|
Accessories
-
R-78K5.0-0.5
0.5A switching regulator, input 6.5...36V output 5V/500mA, SIP3CHF 2.3043 Available immediately -
R-78C3.3-1.0
3.3W DC/DC converter, input 7...42V, output 3.3V/1000mA, SIP3CHF 9.5042 Available immediately -
R24P21503D
2W DC/DC converter, input 24V +/-10%, output +15V/+66mA / -3V/-333mA, SIP7CHF 9.4525 Available immediately -
R-78K12-1.0
1A switching regulator, input 15...36V output 12V/1000mA, SIP3CHF 2.9043 Available immediately -
RPX-1.5-CT
1.5A switching regulator, input 4 ...36V output 0.8...30V/1500mA, QFN packageCHF 5.1510 Available immediately
