Enclosed power supplies
156W Power supply 24V/6.5A
CHF 17.00 excl. VAT, plus shipping costs
Item no:
LRS-150F-24
Stock level:19 Available immediately
Packaging ex works:
30 piece
5+ CHF 17.00 CHF 16.20 (4%save)
10+ CHF 16.20 CHF 15.50 (8%save)
20+ CHF 15.50 CHF 15.10 (11%save)
Description

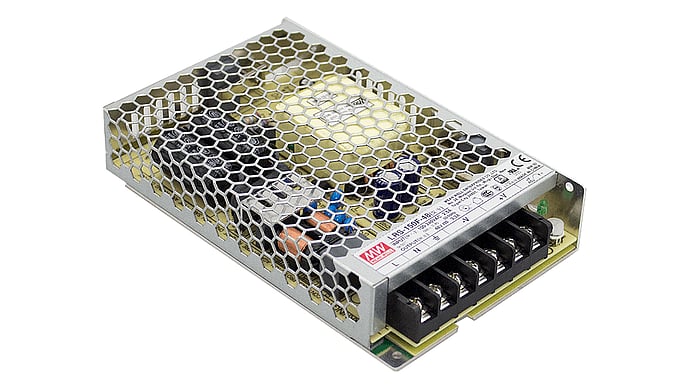

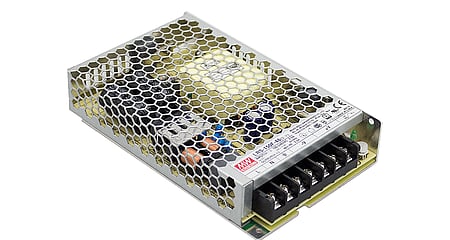

LRS-150F-24 is a power supply unit in a perforated metal housing with a low height of only 30mm.
Technical data
- Input voltage 85 to 264Vac
- Power consumption at no load 0.3W
- Metal housing with screw terminals
- Complies with household appliance standards IEC/EN60335-1 and IEC/EN61558-1,-2-16
- Designed for operations up to max. 5000m.a.s.l. operating altitude
- Operating temperature range from -30°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Vibration test up to 5G
- Dimensions 159 x 97 x 30mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet LRS-150F | PDF(724.36 KB) |
|---|---|
| Test Report | PDF(361.41 KB) |
| Installation Manual Enclosed | PDF(995.59 KB) |
| Carbon Footprint declaration LRS-150F | PDF(73.64 KB) |
Downloads
| 3D data LRS-150F | Zip file (962.59 KB) |
|---|
