300W medical power supply 12V/25A
CHF 101.70 excl. VAT, plus shipping costs
Description

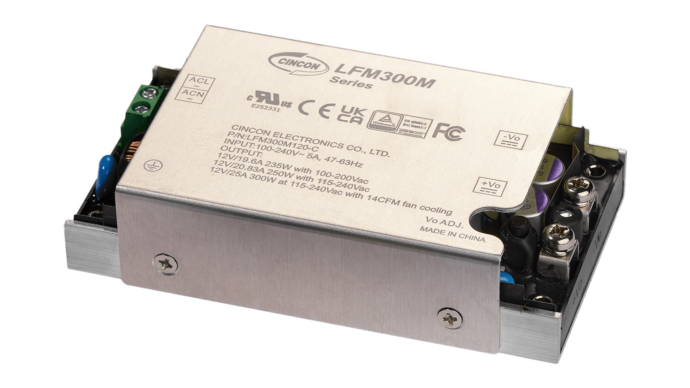

The Medical LFM300M series from Cincon sets a new standard for efficiency with its compact housing. It fulfills the 2xMOPP requirements. Its innovative design with a semi-encapsulated housing and baseplate cooling ensures exceptional performance in a variety of scenarios. With its flat 1-inch profile, it offers a powerful yet space-saving solution.
Technical data
- High power density up to 32.1W/inch³
- No load power consumption <0.3 Watt
- Continuous short-circuit protection
- Overtemperature protection
- Overvoltage protection
- Active PFC complies with EN61000-3-2
- Certified according to IEC/ES/EN60601-1 2x MOPP
- Certified according to IEC/UL/EN62368-1
- Complies with IEC/EN60335-1
- Operating altitude 5000m
- Optional: with threaded hole M3 for mounting (suffix -C0, instead of standard through-hole Ø 3.2mm)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet LFM300M | PDF(686.72 KB) |
|---|---|
| Application Note LFM300M | PDF(1.49 MB) |
Downloads
| 3D data LFM300M | Zip file (3.5 MB) |
|---|
