1200W power supply 28Vdc/42.9A
CHF 381.50 excl. VAT, plus shipping costs
Description

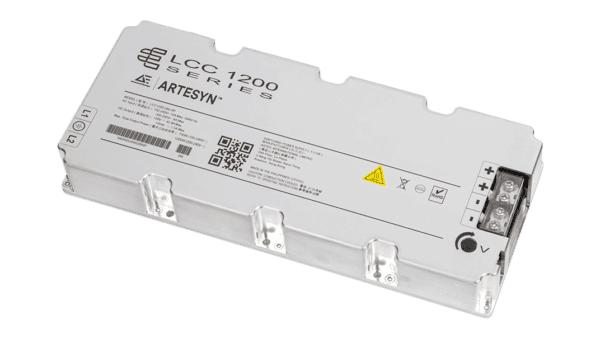

The Artesyn LCC1200 family from Advanced Energy consists of four voltage versions with conduction cooled AC/DC power supplies offering main output voltages of 24V, 28V, 36V or 48Vdc. Each version also has a 5Vdc standby output that can supply up to 1.5A. These 1200Watt rated power supplies have a thermal baseplate and are capable of delivering full output power over a wide temperature range of -40°C...+85°C. The main output is adjustable for maximum application flexibility. For example, the 28Vdc version can be adjusted from 24Vdc to 30Vdc and has a maximum output current of 42.9A.
Technical data
- 1200 watts full power even at high temperatures
- Wide temperature range from -40°C...+85°C with base plate
- Adjustable output voltages
- Remote On/Off
- AC_OK ; DC_OK signals
- 5Vdc standby
- Active current sharing
- Conduction cool/fanless
- I2C / PMBus
- ITE Safety
- Active PFC
- Optional : IP65 version
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet LCC1200 | PDF(405.1 KB) |
|---|---|
| Technical reference note LCC1200 | PDF(1.66 MB) |
