Enclosed power supplies

220W Power supply 24V/9.17A

CHF 92.80 excl. VAT, plus shipping costs

Item no: CFM260S240C
Stock level:2 Available immediately
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

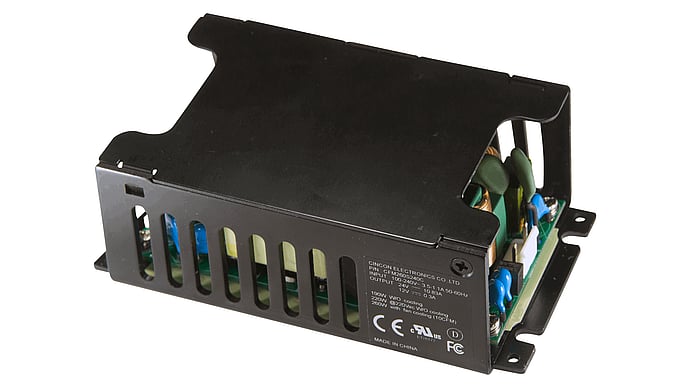

CFM260S240C is Cincon's new ITE AC/DC power supply with high power density, for protection class I applications with protective earth. It has safety approvals in accordance with IEC/UL/EN62368-1 and complies with IEC/EN60335-1.

Technical data

  • Universal input range 85... 264Vac
  • High efficiency 93.5%
  • No load power consumption <0.2 Watt
  • 12V fan output
  • Continuous short-circuit protection
  • Overtemperature protection
  • Operating altitude 5000m
  • Complies with EN55032 (Class B)
  • IEC/EN/UL62368-1 approval
  • Complies with IEC/EN60335-1

Additional information

Enclosed power supplies
Output voltage (Vdc)

24

Power (W)

220

Input voltage range (Vac)

85 to 264

Protection class

Class I

Setting range Vdc max

25.2

Setting range Vdc min

22.8

Application

ITE/AV

Further functions

12Vdc auxiliary output

Manufacturer

Cincon

Length (mm)

116.8

Width (mm)

64

Height (mm)

40.5
LEDs
More
Manufacturer's warranty

3 years

Efficiency typ.

93%

Convection power (W)

200

Data sheets

Data sheet CFM260S PDF(1.11 MB)
Application note CFM260S PDF(1.48 MB)

Downloads

3D Step File CFM260S480C Zip file (17.81 MB)
