Enclosed power supplies
200W Power supply 24V/8.33A
CHF 82.90 excl. VAT, plus shipping costs
Item no:
CFM202S240C
In stock: Available to order
Description

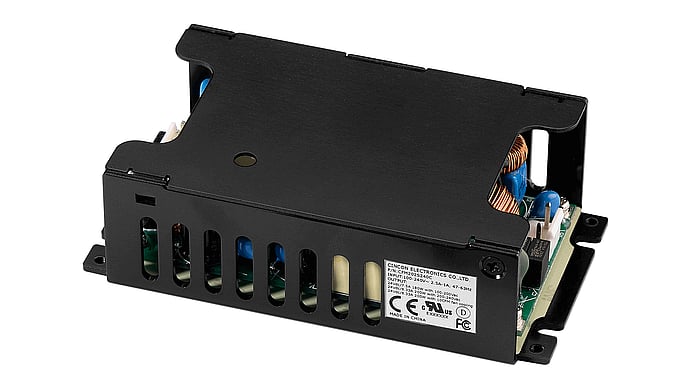

CFM202S240C from Cincon is a high power density ITE AC/DC power supply that is compatible with both Class I and Class II and offers up to 200W of power in a 64×116.8mm footprint. It has safety approvals according to IEC/UL/EN62368-1 and IEC/EN60335-1.
Version C (Cover)
Technical data
- Universal input range 90... 264Vac
- High efficiency of up to 94
- Active PFC function
- Dimensions 2.52" x 4.6"
- 180 watts with natural convection
- 200 Watt fan-cooled
- No load power consumption <150mW
- Continuous short-circuit protection
- Operating altitude 5000m
- Approved safety according to IEC/EN/UL62368-1 and IEC/EN60335-1
- EMI safety complies with Class I and Class II
Additional information
| Enclosed power supplies | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet CFM202S240C | PDF(625.4 KB) |
|---|---|
| Application note CFM202S240C | PDF(622.42 KB) |
Downloads
| 3D data CFM202S240C | Zip file (7.97 MB) |
|---|
