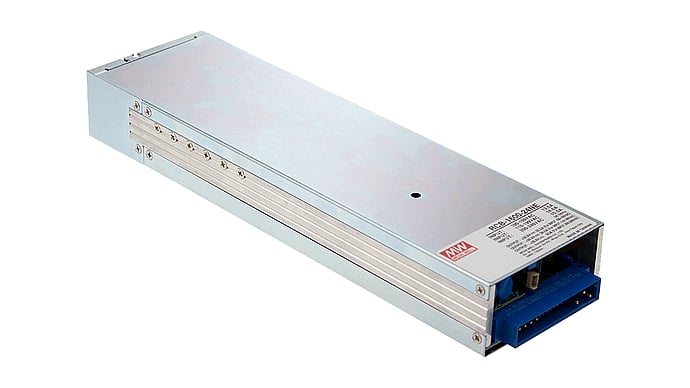

1584W charger for 24V lead-acid and Li Ion batteries, for rack mounting
CHF 390.40 excl. VAT, plus shipping costs
Description
RCB-1600-24 is an intelligent charger for charging lead-acid and lithium-ion batteries. The charging curves can be adjusted and status data read out via the PMBus communication interface. With the Smart Battery Programmer SBP-001, the charging curves can be configured with simple software and stored in the charger. The RCB-1600 is designed for installation in the RHP-1UI rack. Up to 5 RCB-1600s can be operated in parallel or redundantly in the rack.
Technical data
- Charger for lead-acid and Li Ion batteries
- I2C interface, PMBus protocol
- For rack mounting in a rack RHP-1U
- Input voltage 90 to 264Vac, with active PFC
- Three-stage charging characteristic
- Programming of the output voltage and charging current possible
- Built-in OR-ing FET
- Active current sharing up to 8000W in one rack
- PMBus integrated
- Hot swap capable
- Auxiliary circuits 5V/0.3A and 12V/0.8A
- Air cooling with integrated DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 300 x 85 x 41mm (L x W x H)
Additional information
| Rack systems | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
||||||||||||||||
| Chargeurs | ||||||||||||||||
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| Data sheet RCB-1600 | PDF(451.46 KB) |
|---|---|
| RCB-1600 User Manual | PDF(1.02 MB) |
Downloads
| Smart Battery Charging Program Software V1.5 | Zip file (56.33 MB) |
|---|---|
| 3D Step File RCB-1600 | Zip file (492.63 KB) |
