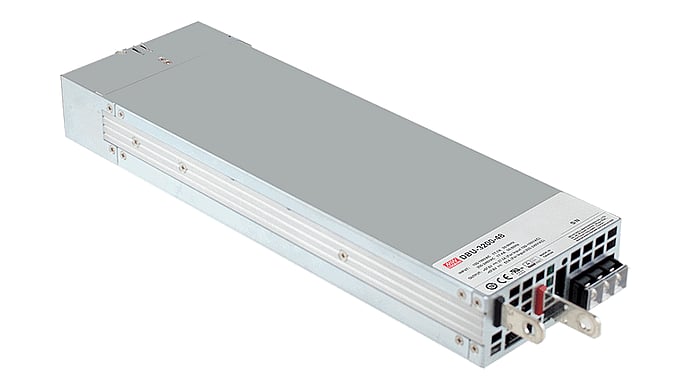

3168W Charger for 24V lead or lithium batteries
CHF 546.20 excl. VAT, plus shipping costs
Item no:
DBU-3200-24
In stock: Available to order
Packaging ex works:
4 piece
5+ CHF 546.20 CHF 518.90 (4%save)
10+ CHF 518.90 CHF 497.00 (9%save)
20+ CHF 497.00 CHF 483.40 (11%save)
Description
DBU-3200 is an intelligent charger for charging lead-acid and lithium-ion batteries. The charging curves can be adjusted and status data read out via the PMBus communication interface. With the Smart Battery Programmer SBP-001, the charging curves can be configured with simple software and stored in the charger.
Technical data
- Charger for lead-acid and Li Ion batteries
- I2C interface, PMBus protocol
- Input voltage 90 to 264Vac, with active PFC
- Three-stage or two-stage charging characteristic
- Programming of the output voltage and charging current via PMBus or software.
- Built-in OR-ing FET
- Active current sharing up to 6400W (2+1)
- Auxiliary circuits 5V/0.3A and 12V/0.8A
- Air cooling with integrated DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 325.8 x 107 x 41mm (L x W x H)
Additional information
| Chargeurs | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
||||||||||
Data sheets
| Data sheet DBU-3200 | PDF(599.17 KB) |
|---|---|
| User Manual DBU-3200 | PDF(619.98 KB) |
| Carbon Footprint declaration DBU-3200 | PDF(74.58 KB) |
Downloads
| Smart Battery Charging Program Software V1.5 | Zip file (56.33 MB) |
|---|---|
| 3D Step File DBU-3200 | Zip file (707.67 KB) |
Accessories
-
SBP-001
Smart Battery Charging ProgrammerCHF 50.002 Available immediately
Similar products
-
DBR-3200-24
3168W Charger for 24V lead or lithium batteries, for rack mountingCHF 651.10Available to order
