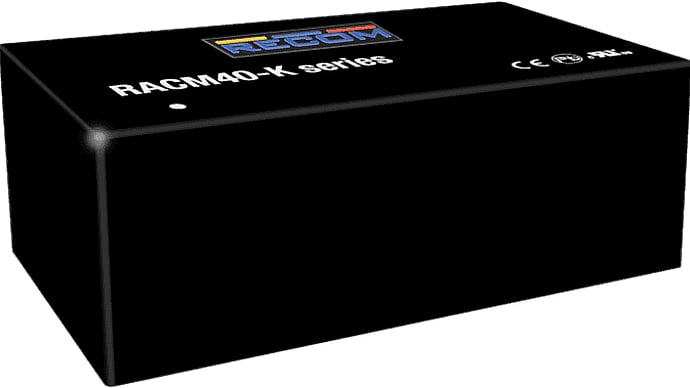

30W AC/DC power supply unit, PCB mounting, 5V/6A
CHF 23.95 excl. VAT, plus shipping costs
Description
The ultra-compact, versatile RACM40-K and RACM40-K/OF series AC/DC converters for industrial, residential and medical applications deliver 40 watts of output power at temperatures from -40°C to +65°C with natural air convection and up to +85°C with derating or forced air cooling. With a clear focus on extended thermal performance for space-constrained systems, these encapsulated 1.8 "x3.2" modules are designed to achieve the highest overall efficiencies across the entire output load range of universal AC inputs. The RACM40-K and RACM40-K/OF are certified to ANSI/AAMI/IEC 60601-1 for medical safety and EN 60601-1-2 for medical EMC and offer 4kVac/1 min isolation, 2MOPP and meet B and BF requirements. It is additionally certified to IEC/EN 62368-1 (CB report) and IEC61558-1/-2-16 for industrial applications and IEC/EN 60335-1 for household appliances. The robust built-in class B EMC filter offers sufficient scope to enable class II or I PELV installations with earthed output.
The mechanically robust design of the fully encapsulated RACM40-K module with 1.6 mm pins and additional threaded inserts gives the series increased stability against shocks and vibrations.
Technical data
- 1.8 "x3.2", encapsulated modules
- 30W power from -40°C up to +65°C ambient temperature
- Operating temperature up to +85°C with derating
- 4 kVac/1min reinforced insulation
- 2MOPP medically certified, B and BF compliant
- 5000m (medical/ITE) Operating altitude
- Integrated class B EMC filter
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet RACM40-K | PDF(878.17 KB) |
|---|
Downloads
| 3D Step File RACM40-K | Zip file (1.77 MB) |
|---|
