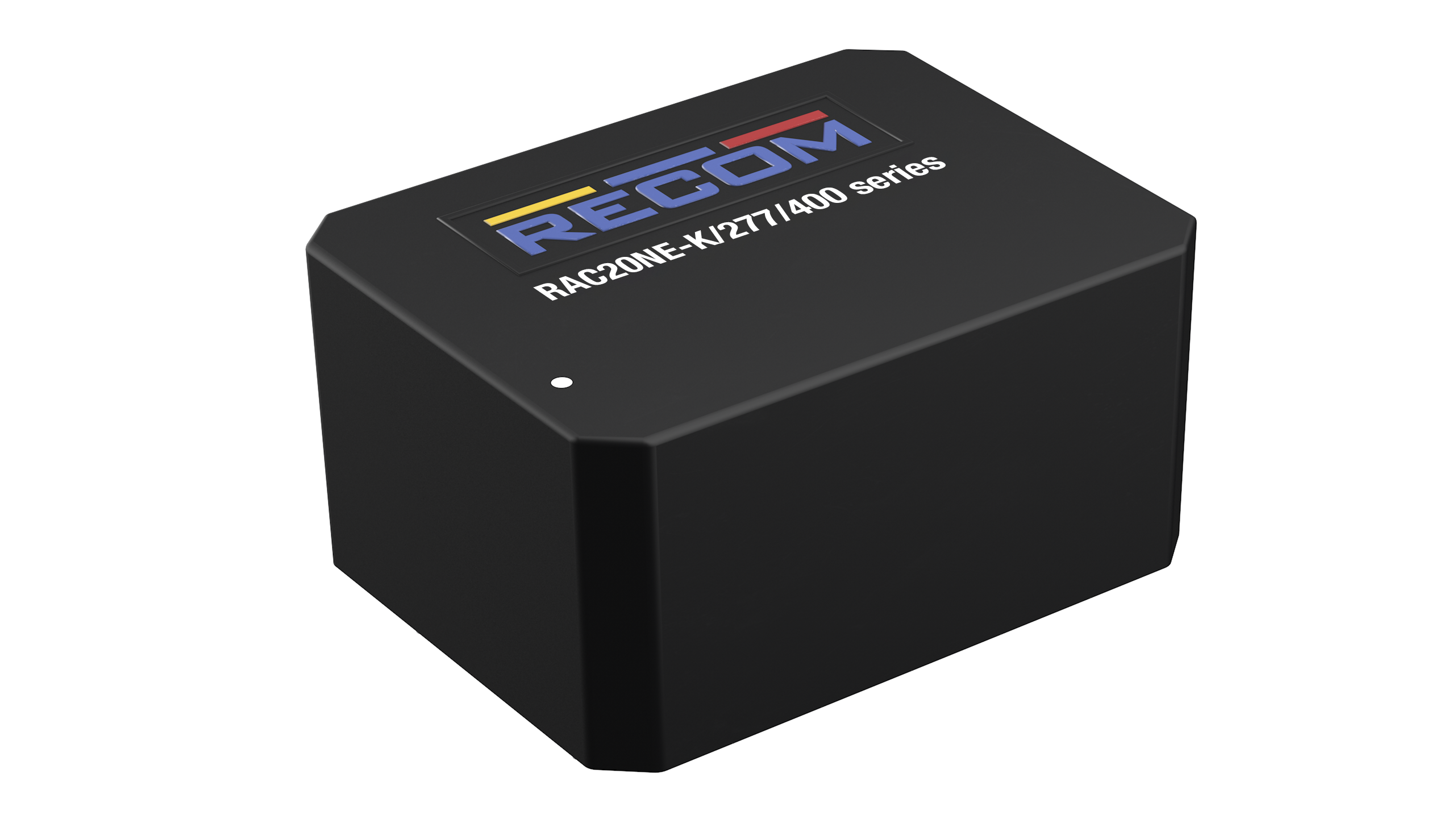

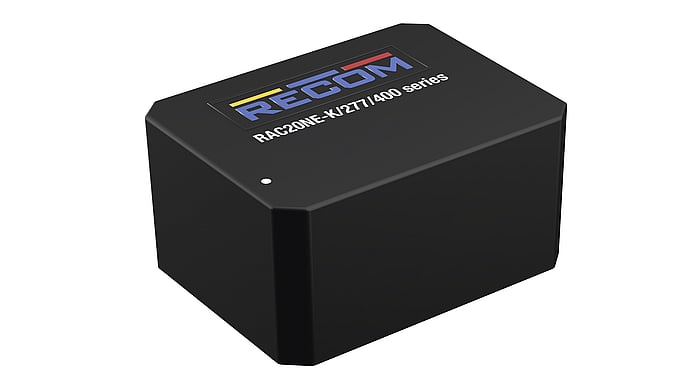

20W AC/DC power supply unit, PCB mounting 24V / 833mA, 90-460Vac input
CHF 14.85 excl. VAT, plus shipping costs
Description
RAC20NE-K encapsulated power supplies for solder mounting are optimized for the requirements of new energy applications such as energy management, monitoring or actuator operation. With a very wide input range of 90 to 460Vac, the power supplies are also suitable for phase-to-phase operation. These compact AC/DC modules meet increased requirements in terms of ambient temperatures, high immunity to transients, insulation barriers, EMC immunity with secondary ground or earth coupling and low power loss in full load operation as well as in standby and sleep mode.
Technical data
- Wide input range from 90 to 460Vac
- Full load up to 60°C without derating
- Output floating or coupled with GND / FE / PE
- Overvoltage resistance 2kVac: L-N / 4kV: L;N earth
- OVC III up to 5000m
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet RAC20NE-K/277/400 | PDF(931.6 KB) |
|---|
Downloads
| 3D Step File RAC20NE-K/277/400 | Zip file (340.9 KB) |
|---|
