PCB mount power supplies

20W AC/DC power supply unit, PCB mounting, 12V/1.8A

CHF 7.50 excl. VAT, plus shipping costs

Item no: IRM-20-12
In stock: Available to order
Packaging ex works: 240 piece
Estimated delivery time: 1-2 weeks
5+ CHF 7.50 CHF 7.20 (3%save)
10+ CHF 7.20 CHF 6.90 (7%save)
20+ CHF 6.90 CHF 6.70 (10%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

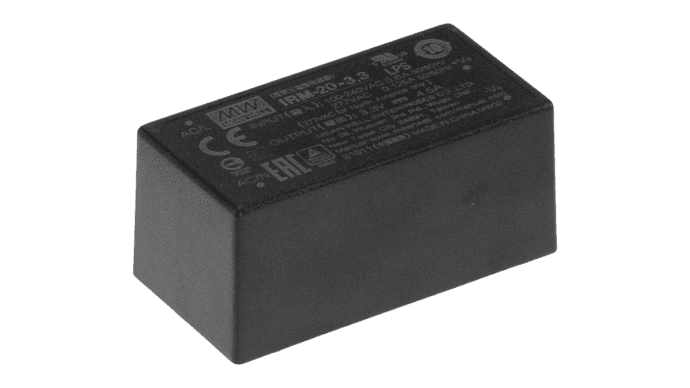

IRM-20-12 is a compact 20W AC/DC power supply unit for direct PCB mounting.

IRM-20 covers an input range from 85 to 305Vac and is constructed in a flame-retardant plastic housing.

Technical data

  • Input voltage 85 to 264Vac
  • No load power consumption <0.1W
  • Very compact design
  • Protection class II Device without earth connection
  • Short-circuit, overload and overvoltage protection
  • Dimensions 52.4 x 27.2 x 24mm (L x W x H)

Additional information

Power supply units for PCB mounting
Output voltage (Vdc)

12

Power (W)

21

Application

ITE/AV

Length (mm)

52.4

Width (mm)

27.2

Height (mm)

24

Input voltage range (Vac)

85 to 305

Certificates

EN62368-1, UL62368-1

Manufacturer

MEAN WELL
LEDs
More
Manufacturer's warranty

3 years

Efficiency typ.

84%

Data sheets

Data sheet IRM-20 PDF(160.93 KB)
Test Report IRM-20-12 PDF(153.74 KB)
Installation instructions PCB power supply units PDF(830.11 KB)

Downloads

3D data IRM-20 Zip file (112.39 KB)
