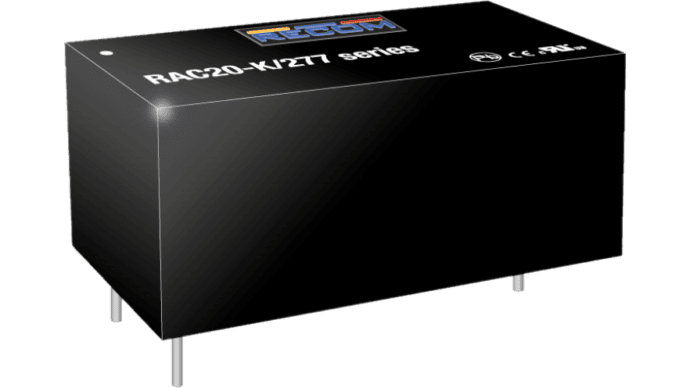

20W AC/DC power supply unit, PCB mounting, 12V / 1670mA
CHF 12.90 excl. VAT, plus shipping costs
Description
The RAC20-K series are highly efficient power supply modules for PCB mounting with extremely low energy losses, especially at low load, making them a benchmark for the continuous and standby operation typically associated with IoT and smart applications. The power supply units cover a worldwide mains input range from 85VAC to 305VAC and have international safety certifications for industrial, AV, ITE and domestic standards. These AC/DC modules operate in a temperature range of -40°C to +85°C with an operating altitude of up to 5000m and offer fully protected single or dual outputs and EMC Class B compliance without the need for external components in floating circuits. Modified versions for OVC III requirements are available on request.
Technical data
- Large input range 85-264VAC / 85-305VAC
- Optimized power supply unit for standby mode (ENER Lot 6)
- Operating altitude up to 5000m
- Operating temperature range: -40°C to +85°C
- Class II installations (without FG)
- EMC-compliant without external components
- Power consumption without load 40mW typ.
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet RAC20-K | PDF(4.87 MB) |
|---|
Downloads
| 3D Step File RAC20-K | Zip file (88.5 KB) |
|---|
