PCB mount power supplies

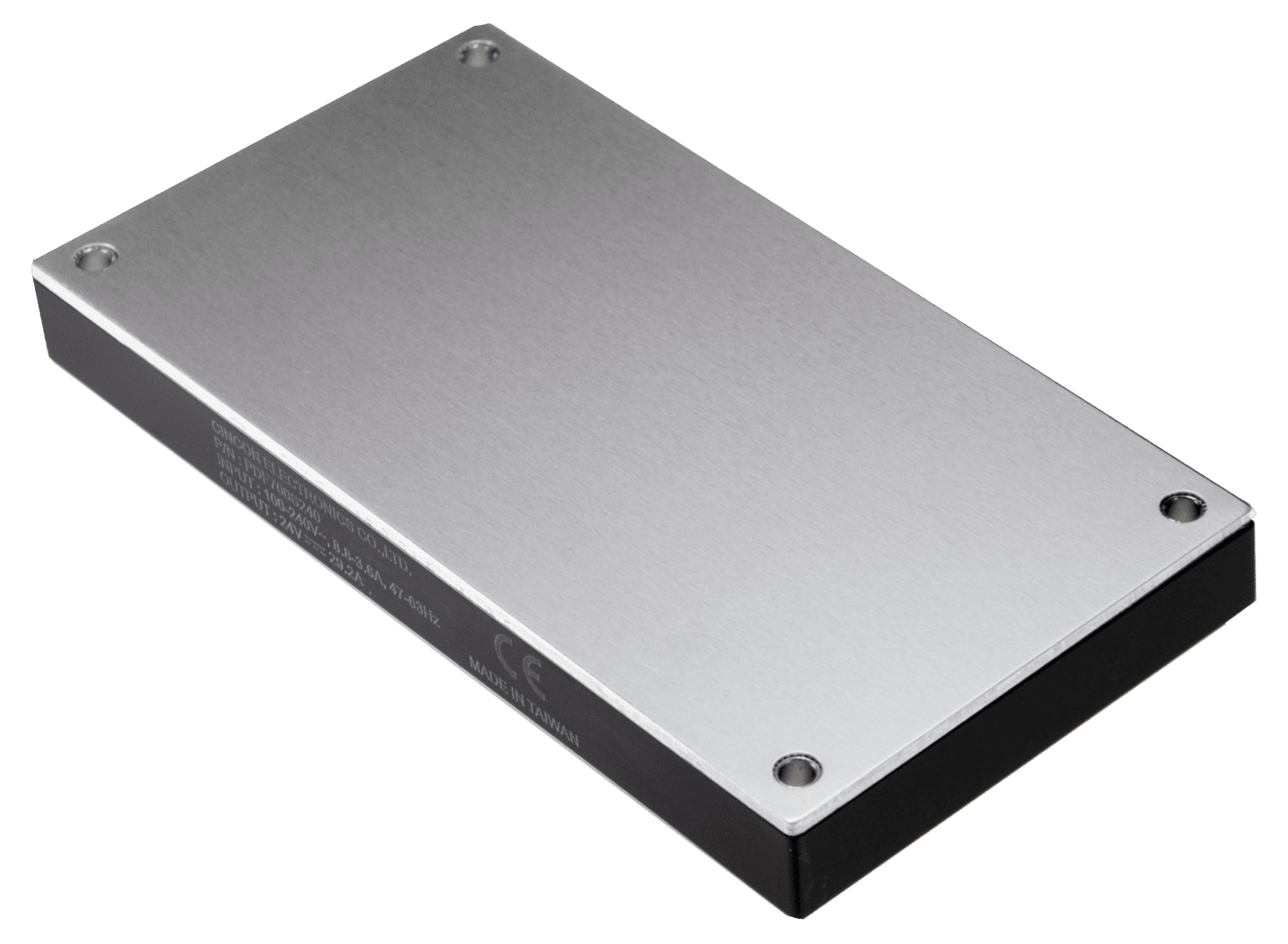

700W AC/DC power supply unit, PCB mounting, 24V/29.2A
CHF 174.90 excl. VAT, plus shipping costs
Item no:
PDF700S240
In stock: Available to order
Description
PDF700S240 from Cincon is an innovative 700W AC-DC power module with high Class I power density in industry standard full brick format (116.8 x 61.0 x 12.7 mm). It has safety approvals according to IEC/UL/EN 62368-1 and offers EMC compliance according to EN55032 Level A for conducted and radiated emissions as well as immunity according to EN55035.
Technical data
- Input voltage 90 to 264Vac
- Power Factor Correction (PFC)
- Very wide operating temperature range from -40°C to +100°C
- 5000m operating altitude
- Full-brick housing with a height of only 12.7 mm
- Remote ON/OFF, Remote Sense
- Safety approval according to IEC/UL/EN 62368-1
- Overvoltage protection (OVP), overtemperature protection (OTP) and continuous short-circuit protection
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Specification PDF700S | PDF(375.75 KB) |
|---|---|
| Application note PDF700S | PDF(1.02 MB) |
Downloads
| 3D drawing PDF700S | Zip file (745.81 KB) |
|---|
