PCB mount power supplies

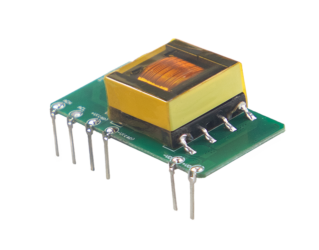

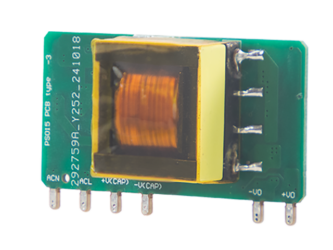

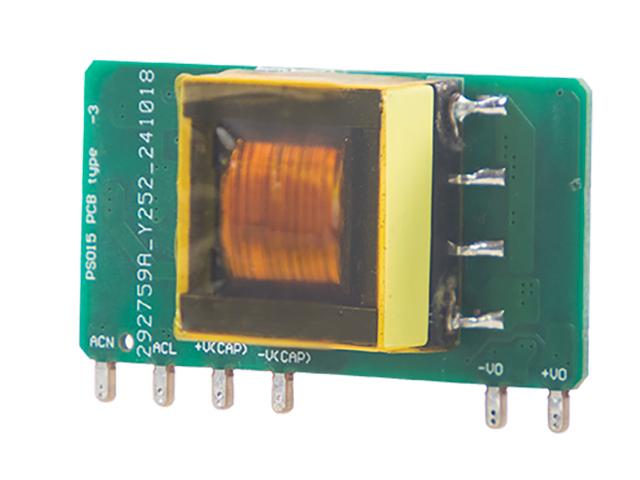

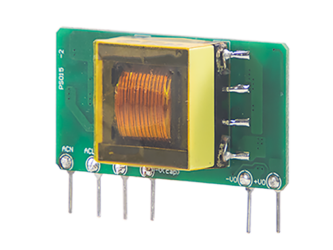

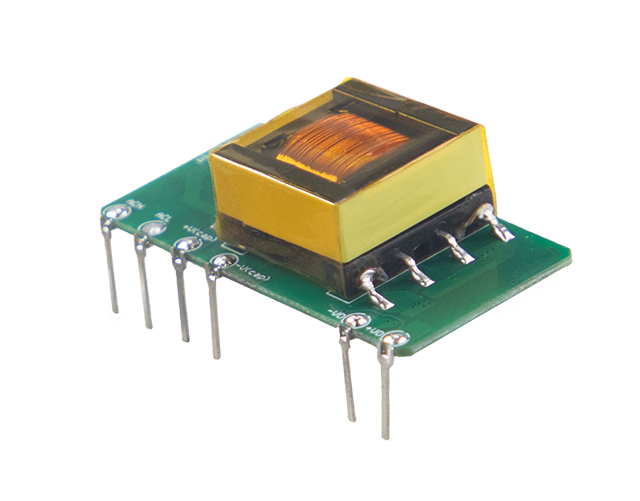

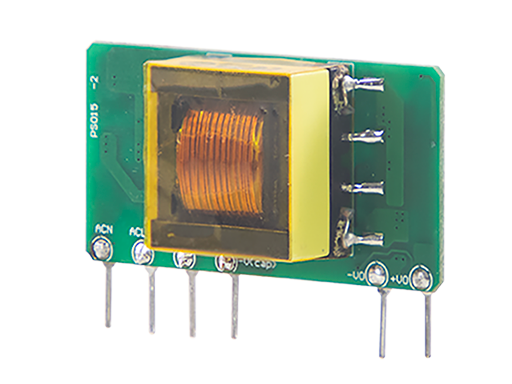

IOB-15 series, 10–15 W AC/DC power supply, PCB mounting
CHF 7.60 excl. VAT, plus shipping costs
Item no:
n. a.
Stock: n. a.
Packaging ex works:
150 pieces tray / 1500 pieces per box
Description
IOB-15 series - compact AC-DC on-board power supply units with 85-305 VAC input, low standby consumption (<0.15 W), -40 to +85 °C temperature range and extensive protection functions. Ideal for space-critical applications such as industrial automation, measuring devices and smart homes.
Technical data
- Miniature size, particularly suitable for PCB applications with limited space.
- 3 different designs (vertical, horizontal and edge)
- Universal input range from 85 to 305 VAC, suitable for worldwide operation and operation in accordance with N.AME 277 VAC
- Extremely low No load power consumption < 0,25 W
- Natural air convection, operating temperature -40 to +85 °C.
- EMC EN55032 Class A/B with external components
- Protective devices: Short circuit, overload, overvoltage
- Safety mark: CE/UKCA
Additional information
| Power supply units for PCB mounting | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| LEDs | ||||||||||||||
|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| Data sheet IOB-15 | PDF(823.84 KB) |
|---|
