Open frame

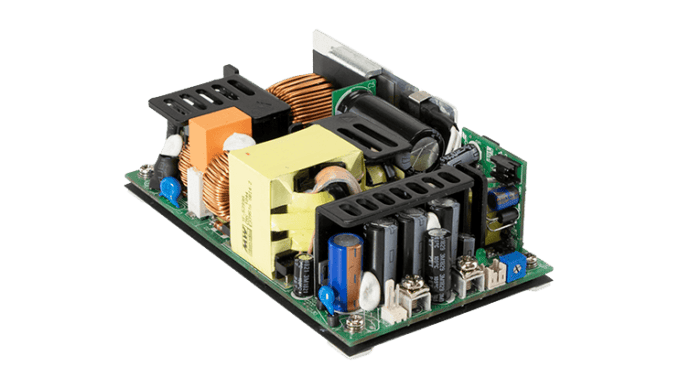

500W Open frame power supply 12V/41.6A

NRND - Use item LOP-500-12 as an alternative.

CHF 80.40 excl. VAT, plus shipping costs

Item no: EPP-500-12
In stock: Available to order
Packaging ex works: 36 piece
Estimated delivery time: 1 to 2 weeks
5+ CHF 80.40 CHF 76.40 (4%save)
10+ CHF 76.40 CHF 73.20 (8%save)
20+ CHF 73.20 CHF 71.20 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

EPP-500-12 is a reliable open frame power supply unit with a very high power density. Without a fan, the power supply delivers up to 320W.

Technical data

  • Input voltage 80 to 264Vac
  • Approved for Class I and Class II applications
  • No load power consumption 0.5W
  • Efficiency up to 94
  • Output signal for power o.k.
  • Auxiliary output 5V / 0.6A
  • Auxiliary output 12V/0.5A
  • Short-circuit, overload, overvoltage and temperature protection
  • Dimensions 127 x 76.2 x 40mm (L x W x H)

Additional information

Open Frame
Output voltage (Vdc)

12

Power (W)

500

Application

ITE/AV

Standard size

3×5 inch

Protection class

Class I, Class II

Length (mm)

127

Width (mm)

76.2

Height (mm)

40

Control signals

Remote ON/OFF, Remote Sense

Status signals

Power Good Signal

Further functions

5Vdc auxiliary output, 12Vdc auxiliary output, peak power

Manufacturer

MEAN WELL
LEDs
Product series

EPP
More
Manufacturer's warranty

3 years

Convection power (W)

320

Efficiency typ.

91%

Data sheets

Data sheet EPP-500 PDF(334.35 KB)
Test Report EPP-500-12 PDF(434.86 KB)
Installation Manual MEAN WELL Open Frame PDF(830.11 KB)
Carbon Footprint declaration EPP-500 PDF(73.63 KB)
