LED constant voltage

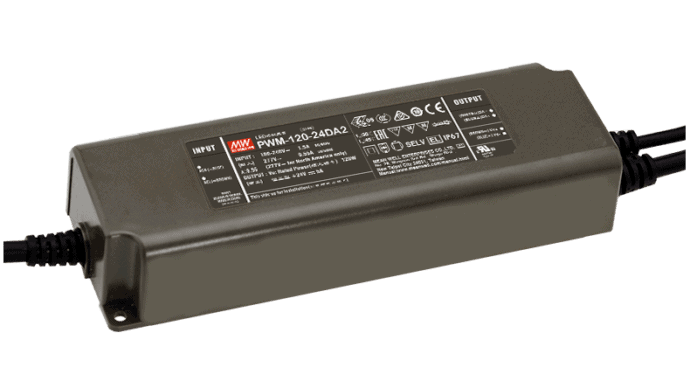

120W LED power supply unit with PWM output 24V/5A, DALI2
CHF 84.80 excl. VAT, plus shipping costs
Item no:
PWM-120-24DA2
Stock level:214 Available immediately
Packaging ex works:
15 piece
Description
PWM-120-24DA2 with PWM output and integrated DALI 2.0 interface is ideal for the operation of constant voltage LED applications such as LED strips.
Control
- DALI 2.0
Dimming range
The load-independent dimming range is 0.2% to 100% of the connected load.
Technical data
- Stand-by consumption 0.5W
- Built-in DALI 2.0 interface
- EL approval for emergency power systems
- Output voltage with PWM dimming with a high dimming frequency of 2.5kHz
- IP67 design for short-term submersion
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -40°C to +70°C
- Dimensions 191 x 63 x 37.5mm (L x W x H)
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
Data sheets
| Data sheet PWM-120 series | PDF(766.59 KB) |
|---|---|
| Test Report PWM-120-24 | PDF(476.43 KB) |
| Fuse protection LED converter | PDF(29.09 KB) |
| Installation instructions Mean Well LED driver | PDF(1.2 MB) |
Downloads
| 3D data PWM-120 | Zip file (516.9 KB) |
|---|
