240W LED driver CV+CC 24V/10A, 3in1 dimming + Vo/Io adjustable on driver
CHF 113.70 excl. VAT, plus shipping costs
Description

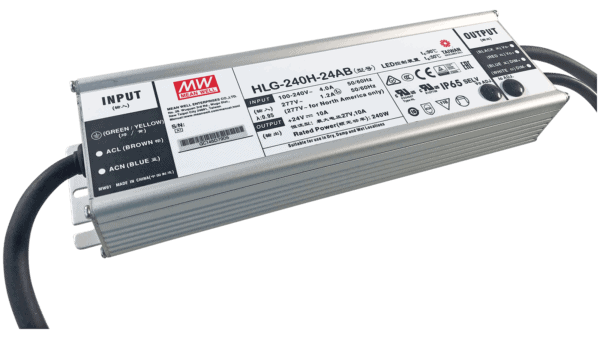

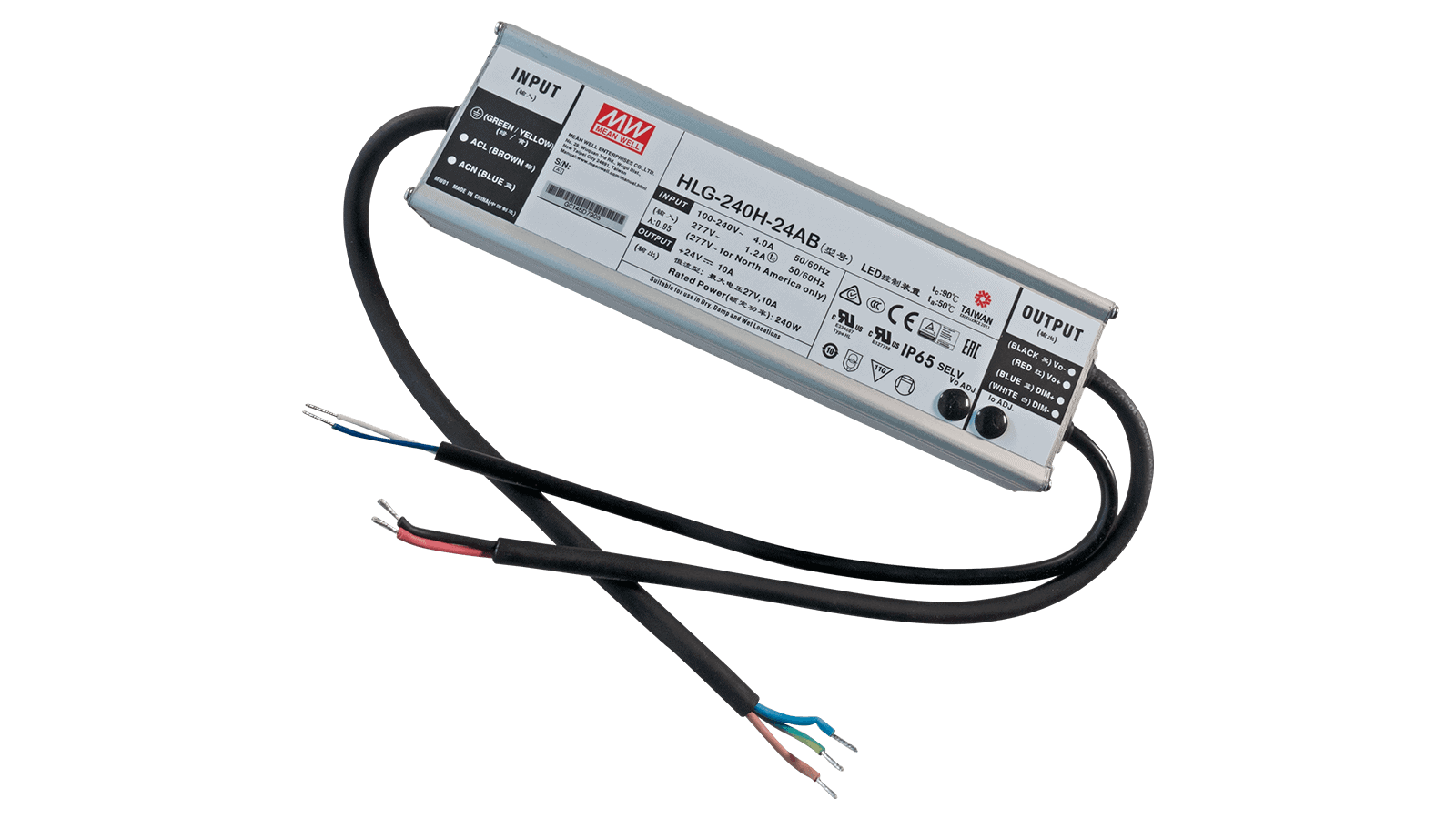

HLG-240H-24AB is a robust, dimmable 240W AC/DC LED converter with a very long service life and high efficiency. Fully encapsulated and installed in a metal housing, the LED driver is IP65 protected and therefore ideal for indoor and outdoor applications.
The new "AB" version of the HLG-240H is a combination of the previous "A" and "B" series. The power supply unit has a built-in 3in1 dimming interface and an additional current and voltage control option on the device. This allows the output voltage to be increased to compensate for voltage loss over long cables.
Technical data
- Can be used as a constant voltage and constant current source

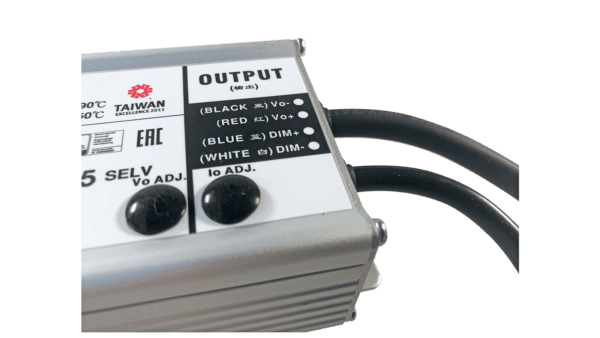

- Current and voltage adjustable on the driver
- Built-in 3in1 dimming function (0/1-10Vdc, PWM, resistor)
- IP65 design, splash-proof
- Very robust design with a long service life
- Surge-proof up to 4kV (IEC61000-4-5)
- Fully encapsulated in aluminum housing
- Operating temperature range from -40°C to +70°C
- Dimensions 244.2 x 68 x 38.8mm (L x W x H)
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
Data sheets
| Data sheet HLG-240H series | PDF(851.36 KB) |
|---|---|
| Test Report HLG-240H-24 | PDF(171.64 KB) |
| Installation instructions LED driver | PDF(1.2 MB) |
| Carbon Footprint declaration HLG-240H-AB | PDF(73.84 KB) |
Downloads
| 3D data HLG-240H | Zip file (175.91 KB) |
|---|
Accessories
-
KAA-4R4V-10S
4 channel KNX dimming actuator 0-10V / 1-10V, 10A per channel, with KNX SecureCHF 156.4010 Available immediately -
DAP-04-S01
DALI to PWM converterCHF 44.2019 Available immediately -
P16NP104MAB15
100K Ohm dimming controller linearCHF 16.00115 Available immediately -
THB.387.AB3A
Round plug, 3p, pin+socket, screw connection, wire protection, D7-12mm, IP68CHF 11.00Available to order -
207-1331
Wago IPx8 gel box, for core cables, branch (with gel), size 1CHF 9.0012 Available immediately -
ESB001.LED.230VAC
Inrush current limiter (DIN rail version), 43A, ultra-compactCHF 100.9037 Available immediately -
SLIM-CBU-DALI
Signal converter CASAMBI to DALI or 0/1-10V, CASAMBI input, DALI or 0/1-10V outputCHF 99.5023 Available immediately
Similar products
-

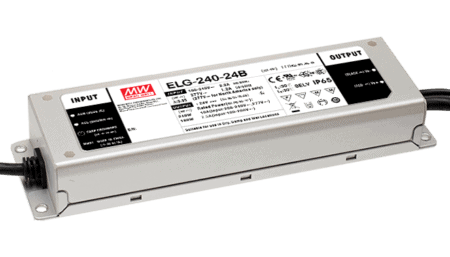

ELG-240-24B-3Y
