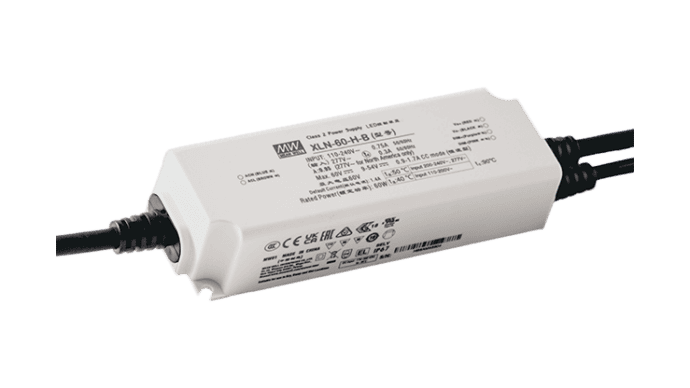

60W LED control gear 900...1700mA/9V...54V, 3in1 dimming, NFC
CHF 48.40 excl. VAT, plus shipping costs
Description
XLN-60-H-B is a flexible LED driver with constant current output for direct operation of LED lighting applications and 3in1 dimming function.
Highlights
- The output current can be programmed via the smartphone using NFC
- Wide voltage range of 9-54Vdc also enables the operation of smaller loads
- 3in1 dimming function (0-10V / 1-10V / resistor / 10V PWM control)
- Dimming is flicker-free with current control, no PWM at the output
- IP67 protected
Control
- 0/1-10V signal (10V=100% Iout, 1V=10% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 8kΩ =8% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 10% Duty Cycle=10% Iout, 0% Duty Cycle=Off)
Dimming range
The dimming range is 6% to 100% of the selected output current.
Mean Well NFC utility
iOS Link: MEAN WELL in the App Store
Google Play Store Link: MEAN WELL – Apps on Google Play
Technical data
- Fully encapsulated plastic housing with IP67 protection
- Output current programmable via NFC
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet XLN-60 | PDF(934.46 KB) |
|---|---|
| DVT Test Report XLN-60-H | PDF(1.09 MB) |
| Declaration CO2 footprint | PDF(74.15 KB) |
Downloads
| 3D Step File XLN-60 | Zip file (467.58 KB) |
|---|
