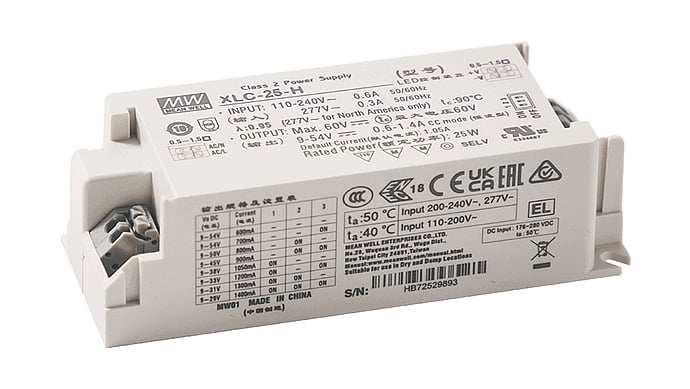

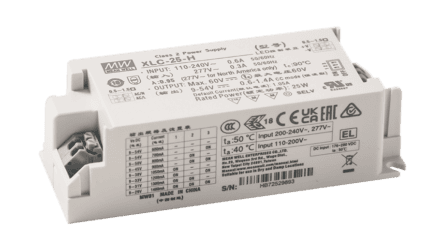

25W LED control gear 300mA to 1050mA/9V...54V, DALI2, AC Push, NFC
CHF 37.40 excl. VAT, plus shipping costs
Description
XLC-25-H-DA2N is a flexible LED driver with constant current output for direct operation of LED lighting applications. Dimmable via AC Push or DALI.
Highlights
- The output current can be programmed via the smartphone using NFC
- Wide voltage range of 9-54Vdc also enables the operation of smaller loads
- Dimmable via AC Push or DALI
- Dimming is flicker-free with current control, no PWM at the output
Control
- DALI 2.0
- AC Push
Dimming range
The dimming range is 0.1% to 100% of the selected output current.
Mean Well NFC utility
iOS Link: MEAN WELL in the App Store
Google Play Store Link: MEAN WELL – Apps on Google Play
Technical data
- Plastic housing
- Protection class II without earth connection
- Flicker-free according to IEEE1789/ErP
- EL certified for emergency lighting operation
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Specification XLC-25 | PDF(1.11 MB) |
|---|---|
| DVT Test Report XLC-25-H | PDF(1.06 MB) |
| Declaration CO2 footprint | PDF(73.39 KB) |
| Installation instructions LED driver Mean Well | PDF(1.2 MB) |
Downloads
| 3D Step File XLC-25_XLC-40 | Zip file (560.81 KB) |
|---|
Accessories
-
SC-2305-RP-AC-EDIZIODUE
DALI rotary switch, wall mounting, EdizioDue compatibleCHF 99.5010 Available immediately -
DLC-02
2-channel DALI 2.0 controller for 2×64 DALI drivers, single color, Tunable White, RGBWCHF 351.902 Available immediately
