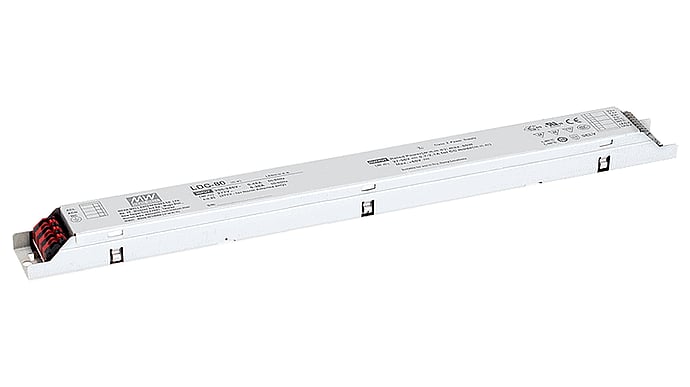

80W LED driver CP 700...2100mA/27V...56V
CHF 53.40 excl. VAT, plus shipping costs
Description
The LED driver LDC-80 with constant power output is designed for the operation of LED lighting applications with 700mA to 2100mA in the voltage range from 27 to 56Vdc. Thanks to the constant power topology, the full 80W are available in the current range from 1430mA to 2100mA.
Resistance values for current setting
| Electricity | Resistance value | Article |
| 700mA | Open | - |
| 900mA | 180kOhm | MBB02070C1803FCT00 |
| 950mA | 150kOhm | MBB02070C1503FCT00 |
| 1050mA | 100kOhm | MBA02040C1003FCT00 |
| 1200mA | 68kOhm | MBA02040C6802FCT00 |
| 1400mA (ex works) | 47kOhm | MBA02040C4702FCT00 |
| 1600mA | 33kOhm | MBA02040C3302FCT00 |
| 1900mA | 24kOhm | MBA02040C2402FC100 |
| 2100mA | 18kOhm | MBA02040C1802FCT00 |
Technical data
- Output current 700 to 2100mA. Adjustable with fixed resistor
- Voltage range 27 to 56Vdc
- Full power from 1430mA to 2100mA
- SELV and isolated
- Dimensions 360 x 30 x 21mm (L x W x H)
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet LDC-80 series | PDF(573.84 KB) |
|---|---|
| Test Report LDC-80 | PDF(519.08 KB) |
| Installation instructions Mean Well LED driver | PDF(1.2 MB) |
Downloads
| 3D data LDC-80 | Zip file (103.1 KB) |
|---|
Accessories
-
MBB02070C1503FCT00
Current setting resistor LDC-35, 400mA / LDC-55, 700mA / LDC-80, 950mA433 Available immediately -
MBA02040C1003FCT00
Current setting resistor LDC-35, 450mA / LDC-80, 1050mA210 Available immediately -
MBA02040C6802FCT00
Current setting resistor LDC-35, 500mA / LDC-55, 900mA / LDC-80, 1200mA594 Available immediately -
MBA02040C3302FCT00
Current setting resistor LDC-35, 700mA / LDC-55, 1200mA / LDC-80, 1600mA558 Available immediately -
MBA02040C2402FC100
Current setting resistor LDC-35, 800mA / LDC-55, 1450mA / LDC-80, 1900mA180 Available immediately -
MBA02040C1802FCT00
Current setting resistor LDC-35, 950mA / LDC-55, 1600mA / LDC-80, 2100mA530 Available immediately -
MBB02070C1803FCT00
Current setting resistor LDC-80, 900mA80 Available immediately
