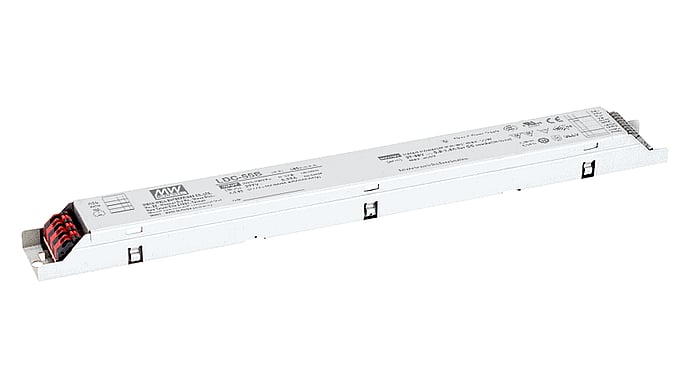

55W LED driver 500...1600mA/27V...56V, 3in1 dimming
CHF 51.60 excl. VAT, plus shipping costs
Description
The LED driver LDC-55B with constant power output is designed for the operation of LED lighting applications with 500mA to 1600mA in the voltage range from 27 to 56Vdc. Thanks to the constant power topology, the full 55W are available in the current range from 980mA to 1600mA.
Resistance values for current setting
| Electricity | Resistance value | Article |
| 500mA | Open | - |
| 700mA | 150kOhm | MBB02070C1503FCT00 |
| 900mA | 68kOhm | MBA02040C6802FCT00 |
| 1050mA (ex works) | 47kOhm | MBA02040C4702FCT00 |
| 1200mA | 33kOhm | MBA02040C3302FCT00 |
| 1300mA | 27kOhm | MBA02040C2702FCT00 |
| 1450mA | 24kOhm | MBA02040C2402FCT00 |
| 1600mA | 18kOhm | MBA02040C1802FCT00 |
Technical data
- Output current 500 to 1600mA. Adjustable with fixed resistor (see accessories)
- 3in1 dimming function (0-10V, PWM, resistance)
- Voltage range 27 to 56Vdc
- Full power from 980mA to 1600mA
- SELV and isolated
- Dimensions 320 x 30 x 21mm (L x W x H)
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet LDC-55 series | PDF(571.4 KB) |
|---|---|
| Test Report LDC-55 | PDF(534.17 KB) |
| Installation instructions Mean Well LED driver | PDF(1.2 MB) |
Downloads
| 3D data LDC-55 | Zip file (93.44 KB) |
|---|
Accessories
-
MBB02070C1503FCT00
Current setting resistor LDC-35, 400mA / LDC-55, 700mA / LDC-80, 950mA433 Available immediately -
MBA02040C6802FCT00
Current setting resistor LDC-35, 500mA / LDC-55, 900mA / LDC-80, 1200mA594 Available immediately -
MBA02040C3302FCT00
Current setting resistor LDC-35, 700mA / LDC-55, 1200mA / LDC-80, 1600mA558 Available immediately -
MBA02040C2402FC100
Current setting resistor LDC-35, 800mA / LDC-55, 1450mA / LDC-80, 1900mA180 Available immediately -
MBA02040C1802FCT00
Current setting resistor LDC-35, 950mA / LDC-55, 1600mA / LDC-80, 2100mA530 Available immediately -
MBA02040C2702FCT00
Current setting resistor LDC-55, 1300mA422 Available immediately
