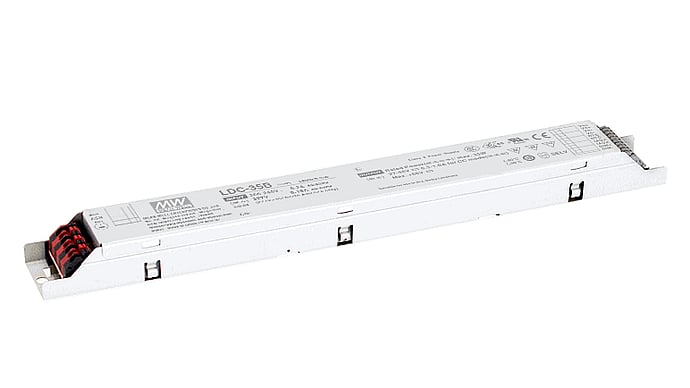

35W LED driver CP 300...1000mA/27V...56V, 3in1 dimming
CHF 48.20 excl. VAT, plus shipping costs
Description
The LED driver LDC-35 with constant power output is designed for the operation of LED lighting applications with 300mA to 1000mA in the voltage range from 27 to 56Vdc. Thanks to the constant power topology, the full 35W are available in the current range from 625mA to 1000mA. Version with 3in1 dimming function
Resistance values for current setting
| Electricity | Resistance value | Article |
| 300mA | Open | - |
| 350mA | 300kOhm | MBA02040C3003FCT00 |
| 400mA | 150kOhm | MBB02070C1503FCT00 |
| 450mA | 100kOhm | MBA02040C1003FCT00 |
| 500mA | 68kOhm | MBA02040C6802FCT00 |
| 600mA | 47kOhm | MBA02040C4702FCT00 |
| 700mA (ex works) | 33kOhm | MBA02040C3302FCT00 |
| 800mA | 24kOhm | MBA02040C2402FC100 |
| 950mA | 18kOhm | MBA02040C1802FCT00 |
Technical data
- Output current 300 to 1000mA. Adjustable with fixed resistor
- Voltage range 27 to 56Vdc
- 3in1 dimming function (0-10V, PWM, resistance)
- Full power from 625mA to 1000mA
- SELV and isolated
- Dimensions 280 x 30 x 21mm (L x W x H)
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet LDC-35 series | PDF(575.46 KB) |
|---|---|
| Test Report LDC-35 | PDF(492.44 KB) |
| Installation instructions Mean Well LED driver | PDF(1.2 MB) |
Downloads
| 3D data LDC-35 | Zip file (93.71 KB) |
|---|
Accessories
-
MBA02040C3003FCT00
Current setting resistor LDC-35, 350mA580 Available immediately -
MBB02070C1503FCT00
Current setting resistor LDC-35, 400mA / LDC-55, 700mA / LDC-80, 950mA433 Available immediately -
MBA02040C1003FCT00
Current setting resistor LDC-35, 450mA / LDC-80, 1050mA210 Available immediately -
MBA02040C6802FCT00
Current setting resistor LDC-35, 500mA / LDC-55, 900mA / LDC-80, 1200mA594 Available immediately -
MBA02040C4702FCT00
Current setting resistor LDC-35, 600mA / LDC-55, 1050mA / LDC-80, 1400mA258 Available immediately -
MBA02040C3302FCT00
Current setting resistor LDC-35, 700mA / LDC-55, 1200mA / LDC-80, 1600mA558 Available immediately -
MBA02040C2402FC100
Current setting resistor LDC-35, 800mA / LDC-55, 1450mA / LDC-80, 1900mA180 Available immediately -
MBA02040C1802FCT00
Current setting resistor LDC-35, 950mA / LDC-55, 1600mA / LDC-80, 2100mA530 Available immediately
