LED constant current

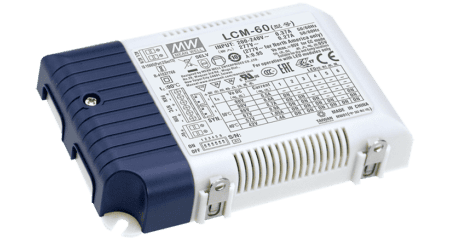

60W LED driver CC 500-1400mA, 2-90Vdc, ENOCEAN
CHF 94.80 excl. VAT, plus shipping costs
Item no:
LCM-60EO
Stock level:5 Available immediately
Packaging ex works:
54 piece
Description
LCM-60EO is a flexible, dimmable LED converter with constant current output and integrated ENOCEAN wireless dimming.
Highlights
- The output current can be selected with the DIP switch on the power supply unit
- Wide voltage range of 2-100Vdc also enables the operation of smaller loads
- 3in1 dimming function (0-10V / 1-10V / resistor / 10V PWM control)
- ENOCEAN Wireless Dimming
- NTC function enables the light intensity to be regulated if the LED circuit board is too hot
- Dimming is flicker-free with current control, no PWM at the output
- Up to 10 LCMs can be synchronized in master/slave mode (additional SYNC cable required)
Control
- 0/1-10V signal (10V=100% Iout, 1V=10% Iout, 0V=Off)
- Resistance (100kΩ=100% Iout, 8kΩ =8% Iout,0kΩ=Off)
- 10V PWM signal (100% Duty Cycle=100% Iout, 10% Duty Cycle=10% Iout, 0% Duty Cycle=Off)
- ENOCEAN Wireless Dimming
Dimming range
The dimming range is 6% to 100% of the output current.
Additional information
| LED constant current | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet LCM-60 | PDF(952.03 KB) |
|---|---|
| Test Report LCM-60 | PDF(237.91 KB) |
| Pairing instructions on the LED converter | PDF(170.17 KB) |
| Instructions for pairing Navigan software | PDF(454.51 KB) |
Downloads
| 3D data LCM-60 | Zip file (652.31 KB) |
|---|
