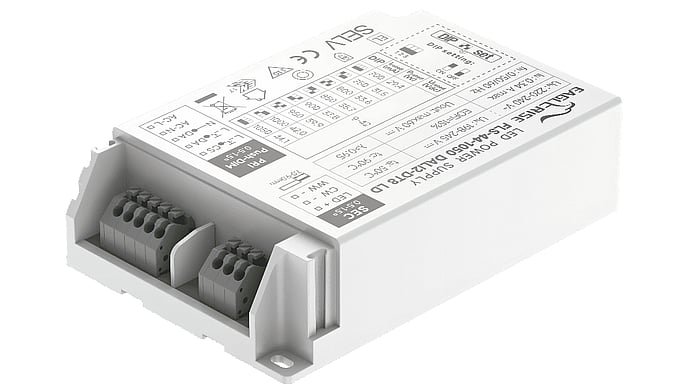

44W Tunable White LED driver constant current 700-1050mA,9-42Vdc, DALI DT8
Instead of CHF 35.80CHF 16.50 excl. VAT, plus shipping costs
Description
The FLS-44-1050-DALI2-DT8-LD LED driver with constant current output is designed for the operation of Tunable White LED lighting applications from 700 to 1050mA in the voltage range from 9 to 42Vdc. The output current can be set using the DIP switch on the device. Side covers with integrated strain relief are pre-assembled for operation outside the luminaire. The driver can be dimmed with DALI2 and AC Push in the range of 1-100%.
Two push-buttons are required for push-button operation. One push-button for the brightness and one push-button for the color temperature.
Technical data
- Forward voltage range 9 to 42Vdc
- DALI2 DT8 and AC Push interface
- Amplitude dimming with dimming range 1...100%
- Adjustable output currents 700mA / 750mA / 800mA / 850mA / 900mA / 950mA / 1000mA / 1050mA
- Side cover fitted ex works, can be removed if required.
- Dimensions 110 x 74 x 30mm (L x W x H) without side cover / 160x74x30mm with side cover
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet FLS-44-1050 DALI2 DT8 LD | PDF(558.98 KB) |
|---|---|
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
Downloads
| 3D Step File FLS-44-1050 DALI2 DT8 LD | Zip file (177.4 KB) |
|---|
