15W DALI DT8, Tunable white, constant current LED driver 100-700mA
CHF 15.00 excl. VAT, plus shipping costs
Description

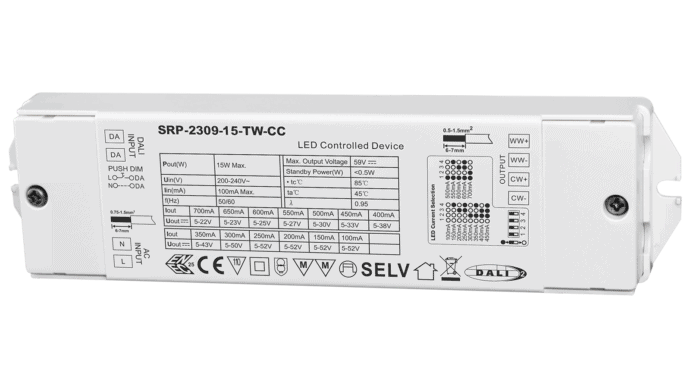

SRP-2309-15-TW-CC is a flexible, dimmable Tunable white LED converter with constant current output. The power supply unit can be controlled with DALI DT8.
Control
- DALI DT8
Application
- Tunable White
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitude dimming
Technical data
DT8 dimmable 2-channel TW power supply unit
In accordance with IEC 62386-101:2014, IEC 62386-
102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
Built-in DALI-2 interface, DALI DT8 device
Dimmable LED driver. Max. Output power 15W
2 channel 100~700mA constant current output, selectable via
DIP switch
Class 2 power supply, fully insulated plastic housing
High power factor and efficiency
For switching and dimming Tunable White LED lighting fixtures
Amplitude dimming, smooth and deep dimming down to 0.1%
Compatible with universal DALI masters that support DT8 commands
IP20 protection class
5 year guarantee
Dimensions: 178x46x22mm
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| SRP-2309-15-TW-CC | PDF(256.08 KB) |
|---|
