Inrush current limiter 3-phase, 16A
CHF 368.80 excl. VAT, plus shipping costs
Description

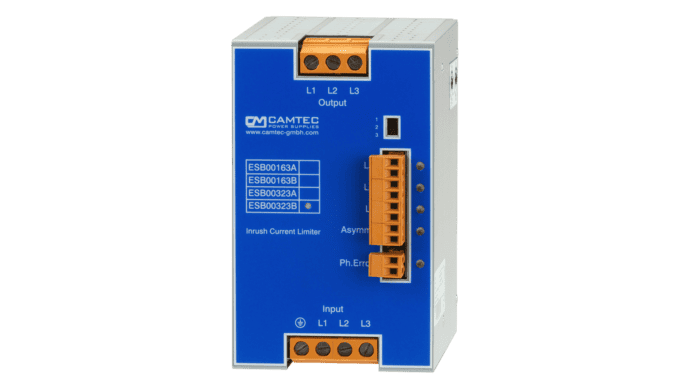

The Camtec ESB00163B series was developed as a cost-effective and professional inrush current limiter. A Camtec ESB offers maximum availability and fault-free operation on capacitive loads. The ESBs have been optimized for use in complex LED applications, in plant engineering and in automation. Existing systems can be retrofitted without any problems. An external power supply is not required.
Technical data
- Peak / effective current limitation
- Integrated phase monitoring
- 200/400/SOOVac 3PH 16A/32A permanent
- DIN TS35mm standard top-hat rail
- Spring terminals 0.5 ... 16mm2
- Integrated bypass relay
- Capacitive loads up to 2,000uF
- Built-in temperature monitoring
- IP20 Housing
- Manufacturer Camtec
Additional information
| Inrush current limiter | ||||||||
|---|---|---|---|---|---|---|---|---|
|
||||||||
| More | ||||||||
|
||||||||
Data sheets
| Data sheet ESB00163B | PDF(485.81 KB) |
|---|
Downloads
| 3D data ESB00163 | Zip file (794.12 KB) |
|---|
