480W 3-phase DIN rail power supply 24V / 20A
CHF 113.70 excl. VAT, plus shipping costs
Description
XTR-480 is the latest generation of 3-phase DIN rail power supplies from MEAN WELL . Extensive functionality, very high efficiency, compact dimensions and high reliability make the power supply the ideal solution for demanding applications.

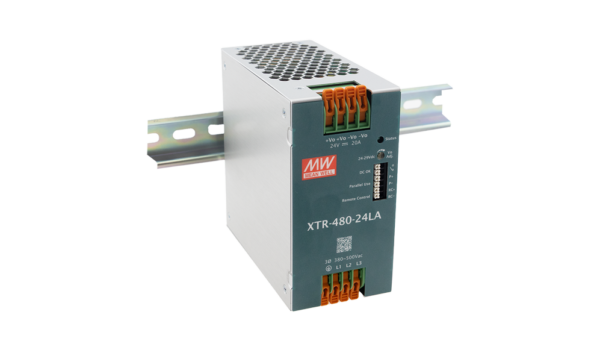

Version with lever-operated push-in clamp
Technical data
- 3-phase input voltage 320 to 600Vac or 450 to 800Vdc
- 2-phase operation possible
- SEMI F47-0706 certified
- 200% peak power for 5 seconds
- Parallel switchable up to 1920W (3+1)
- Overvoltage category III (OVC III)
- Operation up to 5000 meters altitude
- Operating temperature -40°C to +85°C (up to +60°C with full load)
- Extremely low inrush current >10A
- Protective lacquered PCB for basic protection against dust and moisture
Additional information
| DIN rail power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet XTR-480 series | PDF(1.1 MB) |
|---|---|
| DVT test report XTR-480-24 | PDF(752.8 KB) |
Downloads
| 3D data XTR-480 | Zip file (15.49 MB) |
|---|
Accessories
-
DIN rail perforated TS35/7.5
DIN rail perforated TS35/7.5CHF 1.90 - CHF 2.50Select version This product has several variants. The options can be selected on the product page -
RACPRO1-4SP/24V/5A
4 channel E-Fuse, 5A, 24VdcCHF 90.802 Available immediately -
DBUF20-24
20A buffer module for 24V systemsCHF 87.2057 Available immediately -
FF12A230UN
Filterfan 230 Vac size 12: 150 x 150 mm B flow intakeCHF 56.4038 Available immediately -
TRT-10A230V-NO
Thermostat type NO blue (normally open)CHF 10.0030 Available immediately
Similar products
-

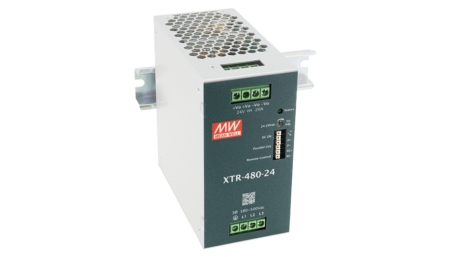

XTR-480-24
480W 3-phase DIN rail power supply 24V / 20ACHF 113.70Available to order -

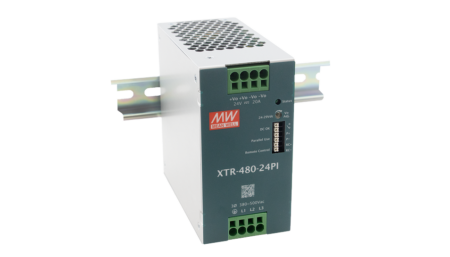

XTR-480-24PI
480W 3-phase DIN rail power supply 24V / 20ACHF 113.702 Available immediately -
RACPRO1-T480/24
480W 3-phase DIN rail power supply 24V/20ACHF 167.652 Available immediately -

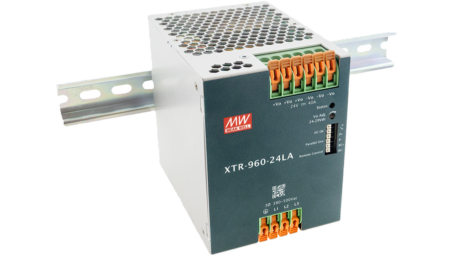

XTR-960-24LA
