120medical desktop power supply 2.5

CHF 40.60 excl. VAT, plus shipping costs

Item no: GSM120B48-R7B
In stock: Available to order
Packaging ex works: 20 piece
5+ CHF 40.60 CHF 38.70 (4%save)
10+ CHF 38.70 CHF 36.90 (9%save)
20+ CHF 36.90 CHF 35.90 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

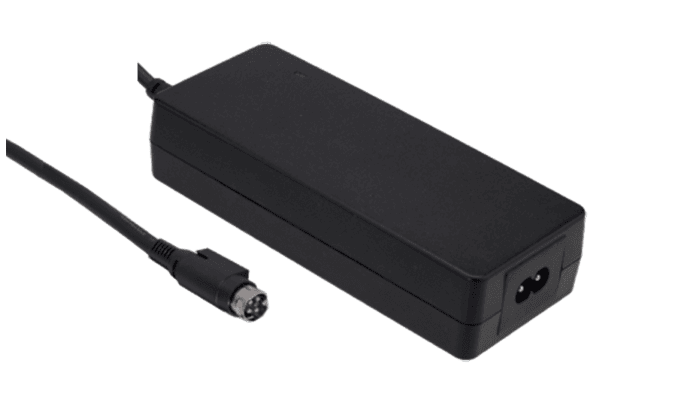

GSM120B48-R7B is a desktop power supply with medical approval. Protection class II version without protective earth.

Technical data

  • Input voltage 80 to 264Vac with PFC
  • Mains connection IEC320-C8
  • DC output Power DIN 4-pin
  • Medical approval 2xMOPP level for patient contact
  • Complies with the home healthcare standard ES60601-1-11
  • Leakage current <100μA
  • Energy efficiency level VI
  • No load power consumption <0.15W
  • Protection class II Device without earth connection
  • Operating temperature range from -30°C to +60°C
  • Dimensions 167 x 67 x 35mm (L x W x H)
  • 3-year guarantee
  • Manufacturer MEAN WELL

Additional information

Desktop power supplies
Output voltage (Vdc)

48

Power (W)

120

Application

Home Healthcare, Medical

Efficiency Level

VI

DC plug

Power DIN 4P

Protection class

Class II
LEDs
Manufacturer

MEAN WELL

Data sheets

Data sheet GSM120B PDF(1.15 MB)
Test Report GSM120B48 PDF(156.19 KB)
Installation Manual MEAN WELL Adapter PDF(1.19 MB)
