Desktop power supplies
40medical desktop power supply 3.34
CHF 17.20 excl. VAT, plus shipping costs
Item no:
GSM40B12-P1J
In stock: Available to order
Packaging ex works:
40 piece
5+ CHF 17.20 CHF 16.40 (4%save)
10+ CHF 16.40 CHF 15.60 (9%save)
20+ CHF 15.60 CHF 15.20 (11%save)
Description

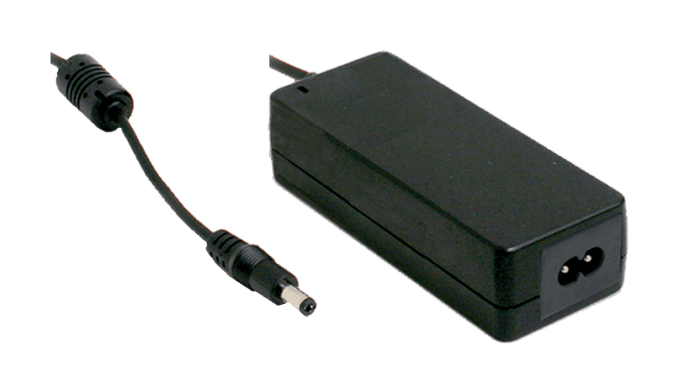

GSM40B12-P1J is a desktop power supply with medical approval. Protection class II version without protective earth.
Technical data
- Input voltage 80 to 264Vac
- Mains connection IEC320-C8
- DC output with round plug 2.1 x 5.5 x 11mm
- Medical approval 2xMOPP level for patient contact
- Complies with the home healthcare standard ES60601-1-11
- Leakage current <50μA
- Energy efficiency level VI (5 to 9V versions with level V)
- No load power consumption <0.1W
- Protection class II Device without earth connection
- Operating temperature range from -30°C to +60°C, derating from +50°C
- Dimensions 125 x 50 x 31.5mm (L x W x H)
- 3-year guarantee
- Manufacturer MEAN WELL
Additional information
| Desktop power supplies | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| LEDs | ||||||||||||
|
||||||||||||
Data sheets
| Data sheet GSM40B | PDF(999.46 KB) |
|---|---|
| Test Report GSM40B12 | PDF(153 KB) |
| Installation Manual MEAN WELL Adapter | PDF(1.19 MB) |
Downloads
| 3D data GSM40B | Zip file (314.91 KB) |
|---|
