DC/DC PCB assembly

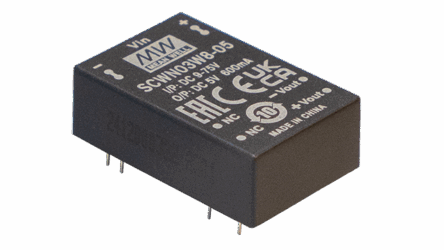

SCWN03W8 + DCWN03W8, 3W DC-DC converter with 8:1 input, DIP24
CHF 8.80 excl. VAT, plus shipping costs
Item no:
n. a.
Packaging ex works:
10 piece
Description
SCWN03W8 Series
Regulated single-output DC-DC converters with 3W output power and an ultra-wide input voltage range from 9 to 75 Vdc.
DCWN03W8 Series
Regulated DC-DC converters with dual outputs, 3W output power, and an ultra-wide input voltage range from 9 to 75 Vdc.
Technical data
- DIP24 Package with Standard Industrial Pinout
- 8:1 Input voltage range from 9 to 75Vdc
- No minimum load required
- Complies with EN 55023 Class B without additional components
- High efficiency of up to 84%
- Protection Circuits: Permanent Short-Circuit Protection / Overload Protection / Overvoltage Protection / UVLO
- 3-year manufacturer's warranty
Additional information
| DC-DC converter | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| Maintenance aids | ||||||||||||||||||||
|
|
||||||||||||||||||||
| LEDs | ||||||||||||||||||||
|
|
||||||||||||||||||||
| More | ||||||||||||||||||||
|
||||||||||||||||||||
Data sheets
| Data Sheet SCWN03W8_DCWN03W8 | PDF(263.79 KB) |
|---|
Downloads
| 3D STEP File SCWN03W8_DCWN03W8 | Zip file (206.56 KB) |
|---|
