DC/DC PCB assembly

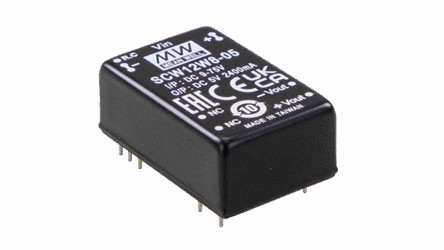

SCW12W8 + DCW12W8, 12W DC-DC converter with 8:1 input, DIP24
CHF 16.60 excl. VAT, plus shipping costs
Item no:
n. a.
Packaging ex works:
15 piece
Description
SCW12W8 Series
Regulated single-output DC-DC converters with 12 W output power and an ultra-wide input voltage range from 9 to 75 Vdc.
DCW12W8 Series
Regulated DC-DC converters with dual outputs, 12W output power, and an ultra-wide input voltage range from 9 to 75 Vdc.
Technical data
- DIP24 Package with Standard Industrial Pinout
- 8:1 Input voltage range from 9 to 75Vdc
- No minimum load required
- Complies with EN55023 Class A without additional components
- High efficiency of up to 87
- Protection Circuits: Permanent Short-Circuit Protection / Overload Protection / Overvoltage Protection / UVLO
- 3-year manufacturer's warranty
Additional information
| DC-DC converter | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| Maintenance aids | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data Sheet SCW12W8_DCW12W8 | PDF(257.69 KB) |
|---|
Downloads
| 3D STEP File SCW12W8_DCW12W8 | Zip file (26.11 KB) |
|---|
