DC/DC PCB assembly
150W DC/DC brick converter Input 14...160V, output 12V/12.5A
CHF 121.60 excl. VAT, plus shipping costs
Item no:
RQB150W12-110S12
In stock: Available to order
5+ CHF 121.60 CHF 115.50 (5%save)
10+ CHF 115.50 CHF 110.60 (9%save)
20+ CHF 110.60 CHF 107.60 (11%save)
Description

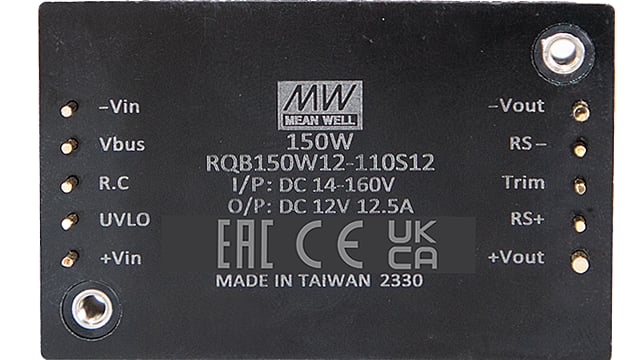

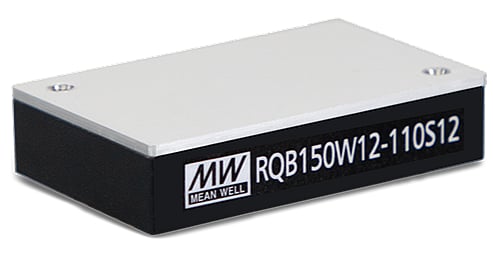

RQB150W12 is a 150W DC-DC converter in a quarter brick housing. With a very wide input range from 14 to 160Vdc, the rail converter is suitable for a wide range of input voltages.
Technical data
- Quarter brick housing
- Complies with railroad standard EN50155
- 12:1 Entrance area
- Remote On/Off
- No minimum load required
- Protective circuit: overtemperature/overvoltage/overcurrent/short circuit (continuous)
- Trim range output voltage +/- 10%
Additional information
| DC-DC converter | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet RQB150W12 | PDF(358.61 KB) |
|---|---|
| DVT Test Report RQB150W12-110S12 | PDF(251.38 KB) |
Downloads
| 3D data RQB150W12 | Zip file (123.6 KB) |
|---|
Accessories
-
RQB150W12-110S12
150W DC/DC brick converter Input 14...160V, output 12V/12.5ACHF 121.60Available to order -
RQB60W12-110S12
60W DC/DC brick converter Input 14…160V, Output 12V/5ACHF 70.90Available to order
Similar products
-
RQB60W12-110S12
60W DC/DC brick converter Input 14…160V, Output 12V/5ACHF 70.90Available to order -
RQB40W12-110S12
40W DC/DC brick converter Input 14...160V, output 12V/3.33ACHF 64.00Available to order
