40A POL DC/DC converter, input 18...75V output 12V/40A, non-isolated
CHF 73.40 excl. VAT, plus shipping costs
Description

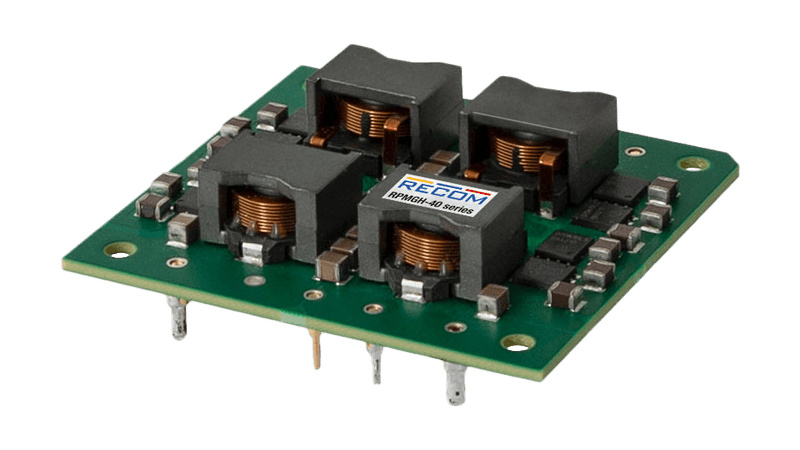

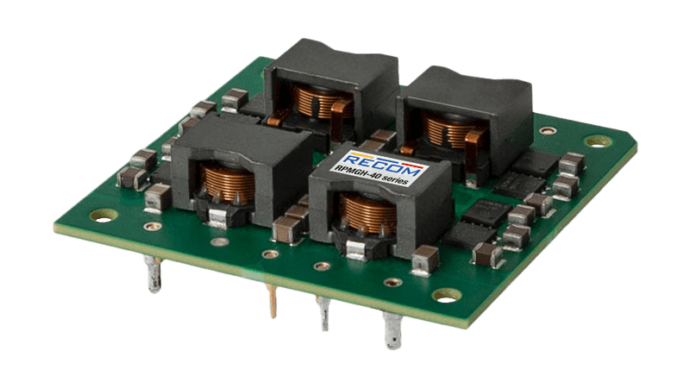

The RPMGH-40 series is a non-isolated 40A DC/DC converter in a half-brick housing. The high efficiency and thermal design of the product means that minimal derating is required, even at high temperatures. The device is ideal for 24V, 28V and 48V power rails as a point-of-load solution in a distributed power architecture. Trimmable output, remote detection and remote control functions as well as undervoltage lockout, overload, overtemperature and short circuit protection are standard.
Technical data
- 40A non-isolated POL transformer
- 18 to 75VDC wide input range
- 3.3 to 24VDC adjustable output
- Standard half-brick format
- High efficiency of up to 95
- Operating temperatures up to 120°C
- 3-year guarantee
Additional information
| DC-DC converter | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet RPMGH-40 | PDF(844.45 KB) |
|---|
Downloads
| 3D Step File RPMGH-40 | Zip file (177.62 KB) |
|---|
