10A POL DC/DC converter, input 18 ... 75V output 12V/10A, non-isolated
CHF 26.30 excl. VAT, plus shipping costs
Item no:
RPMGE12-10
In stock: Available to order
Packaging ex works:
14 piece
10+ CHF 26.30 CHF 25.10 (4%save)
25+ CHF 25.10 CHF 24.35 (7%save)
50+ CHF 24.35 CHF 24.00 (8%save)
100+ CHF 24.00 CHF 23.30 (11%save)
Description

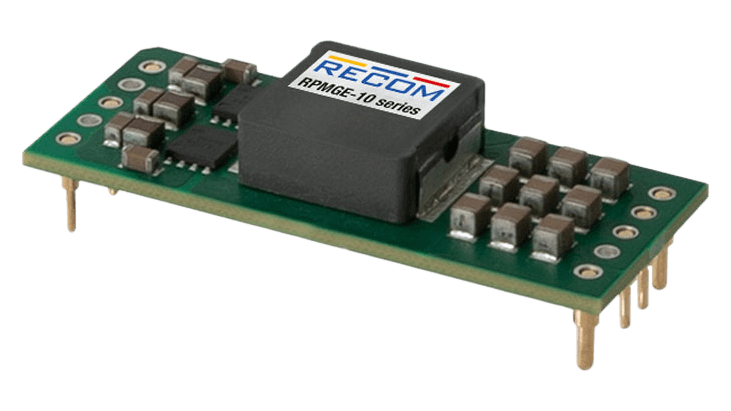

The RPMGE-10 series is a non-isolated 10A DC/DC converter in an eight-brick housing. The high efficiency and thermal design of the product means that minimal derating is required, even at high temperatures. The device is ideal for 24V, 28V and 48V power rails as a point-of-load solution in a distributed power architecture. Trimmable output, remote detection and remote control functions as well as undervoltage lockout, overload, overtemperature and short circuit protection are standard.
Technical data
- 10A non-isolated POL transformer
- 18 to 75VDC (90VDC, transient) wide input range
- 3.3 to 15VDC adjustable output
- Standard eighth brick format
- High efficiency of up to 95
- Operating temperatures up to 120°C
- 3-year guarantee
