DC/DC PCB assembly

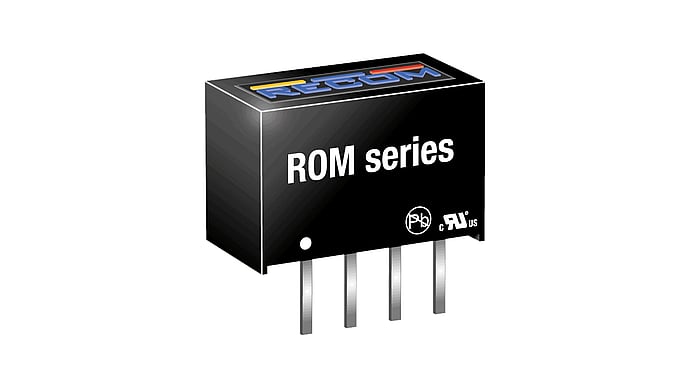

1W DC/DC converter, input 5V, output 5V/200mA, SIP4
CHF 6.65 excl. VAT, plus shipping costs
Item no:
ROM-0505S
In stock: Available to order
Packaging ex works:
42 piece
10+ CHF 6.65 CHF 6.35 (4%save)
25+ CHF 6.35 CHF 6.15 (7%save)
50+ CHF 6.15 CHF 6.05 (9%save)
100+ CHF 6.05 CHF 5.90 (11%save)
Description
The ROM Micro Size DC/DC converter was developed for the isolation or conversion of DC voltages where height is an important factor. Although it has a 7.7 mm micro housing, it does not compromise on features and offers high 3 kVDC isolation and an operating temperature range of -40°C to +85°C.
Technical data
- SIP4 housing in micro format
- 3kVDC/1s basic insulation
- Pin assignment according to industry standard
- UL94V-0 housing material
- Efficiency of up to 85
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| ROM data sheet | PDF(232.47 KB) |
|---|
Downloads
| 3D Step File ROM | Zip file (42.44 KB) |
|---|
