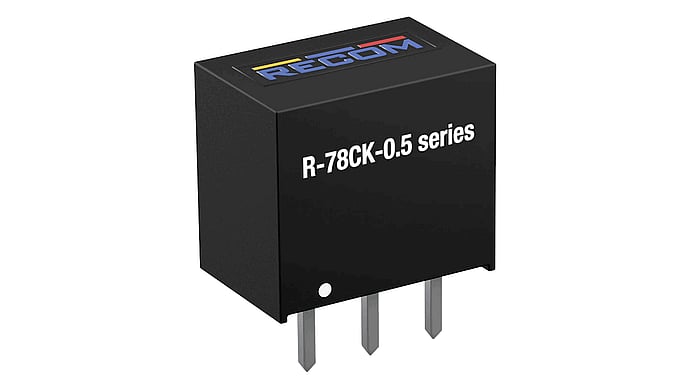

DC/DC PCB assembly

0.5A switching regulator, input 6.5 ...40V output 5V/500mA, SIP3

CHF 2.60 excl. VAT, plus shipping costs

Item no: R-78CK5.0-0.5
In stock: Available to order
Packaging ex works: 43 piece
10+ CHF 2.60 CHF 2.50 (3%save)
25+ CHF 2.50 CHF 2.40 (7%save)
100+ CHF 2.40 CHF 2.30 (11%save)
Wish listWish list
Wish list
Questions
Delivery time request  Print PDF

Description

The R-78CK-0.5 is a non-isolated DC/DC converter from RECOM. This 0.5 amp switching regulator is a compact and efficient solution with a wide input range from 5V to 40V. With an efficiency of up to 96% and the absence of heat sinks, it saves space and energy and can be operated at ambient temperatures of up to 100°C. Its pin assignment is compatible with the linear LM78xx so that it can be easily integrated into existing designs. The converter also features short-circuit protection, thermal shutdown, low ripple and low noise, ensuring stable performance. It is IEC/EN62368-1 certified, making it a versatile solution for a wide range of applications. The fixed output voltages of 3.3, 5, 12 and 15V make the R-78CK particularly user-friendly. Other voltages are available on request. The converter can also be used as a plus-minus converter, making it ideal for circuits that require a negative voltage source.

Technical data

  • Efficiency of up to 96%, no heat sinks required
  • Pin-out compatible with the linear LM78xx
  • Compact housing (L x W x H = 11.5 x 7.55 x 10.2 mm)
  • Large input range (5V - 40V)
  • Short-circuit protection, thermal shutdown
  • Low ripple and noise
  • IEC/EN62368-1 certified
  • Positive-minus converter

Additional information

DC-DC converter
Output voltage (Vdc)

5

Power (W)

2.5

Output current (mA)

500

Nominal input voltage (Vdc)

9, 12, 15, 24, 32, 36

Input voltage ratio

6:1

I/O isolation

not isolated

Regulation

Regulated

Design

SIP3

Length (mm)

11.5

Width (mm)

7.55

Height (mm)

10.2

Application

ITE/AV

Manufacturer

Recom
Maintenance aids
LEDs
More
Input voltage range (Vdc)

6.5...40

Temperature range

-40…+100°C

Efficiency typ.

94%

Data sheets

Data sheet R-78CK-0.5 PDF(189.78 KB)

Downloads

3D Step File Zip file (129.73 KB)
